Examples

Stress, Thermal, Modal, Thermoelasticity

Complete examples of performing a structural simulation, a modal simulation, a static thermal simulation, or a thermo linear elasticity simulation are available, as well as the required geometry files: beam geometry, restraint geometry, load geometry.

Adaptive Mesh Refinement Example (Beta)

Beta Feature: Adaptive Mesh Refinement (AMR)

AMR uses octree subdivision of cells based on error metrics to refine the immersed simulation grid locally. It is only compatible with linear elasticity.

A complete example of performing a linear elasticity simulation with Adaptive Mesh Refinement is available, as well as the required geometry files: geometry, restraint 1, restraint 2, load.

LevelOpt

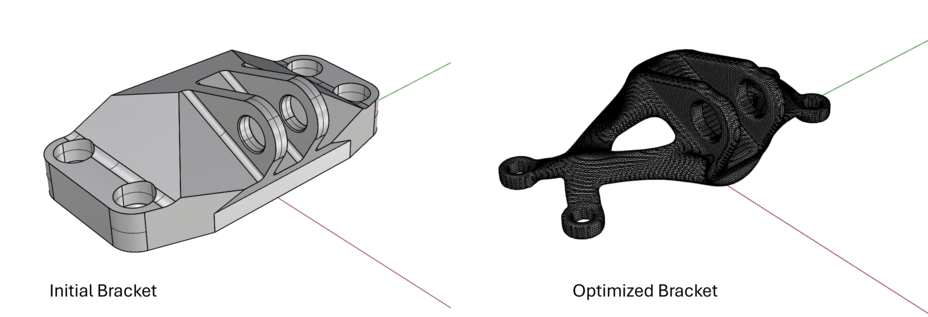

GE Bracket Example

A complete example of performing a LevelOpt bracket optimization is available along with all geometry files: bracket geometry, restraint, load1, load2, and a reference starting design.

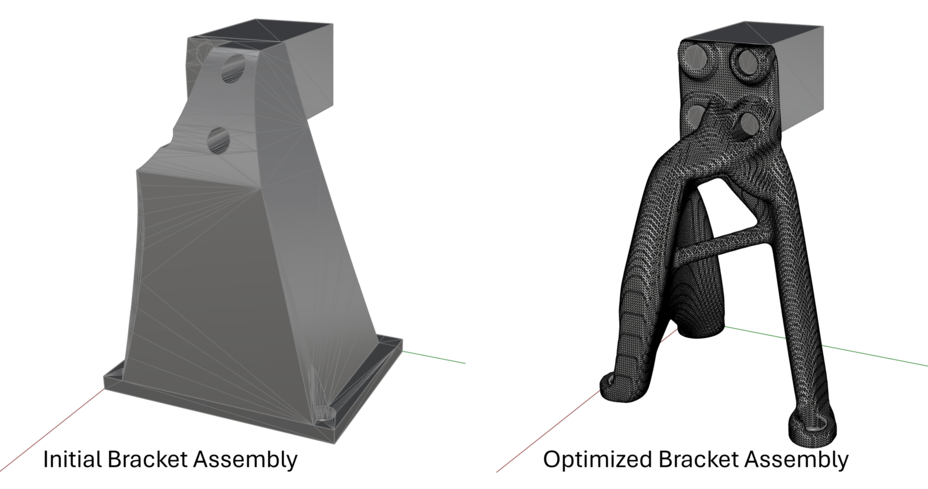

NASA Bracket Assembly Example

A complete example of performing a LevelOpt bracket assembly optimization is available along with all geometry files: design geometry, non-design geometry, restraint, load, and a reference starting design.

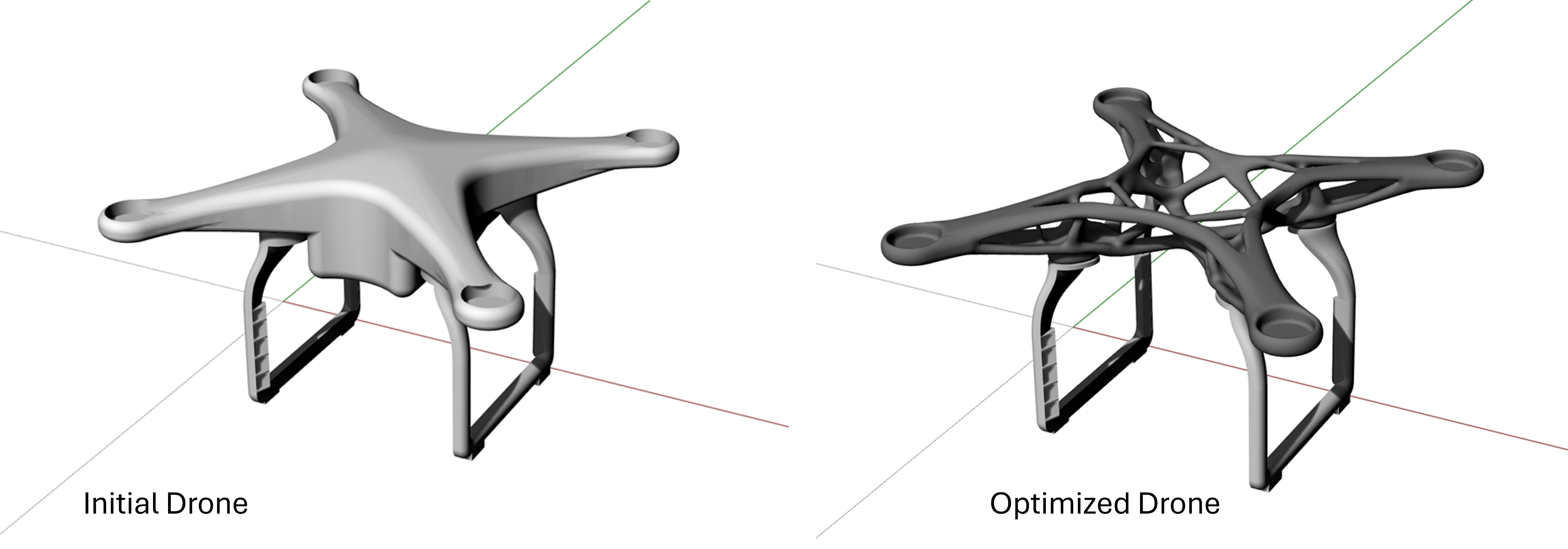

Multiple Load Case Drone Example

A complete example of performing a LevelOpt bracket assembly optimization is available along with all geometry files: design geometry, non-design leg1 geometry, non-design leg2 geometry, restraint1, restraint2, loads, and a reference starting design.

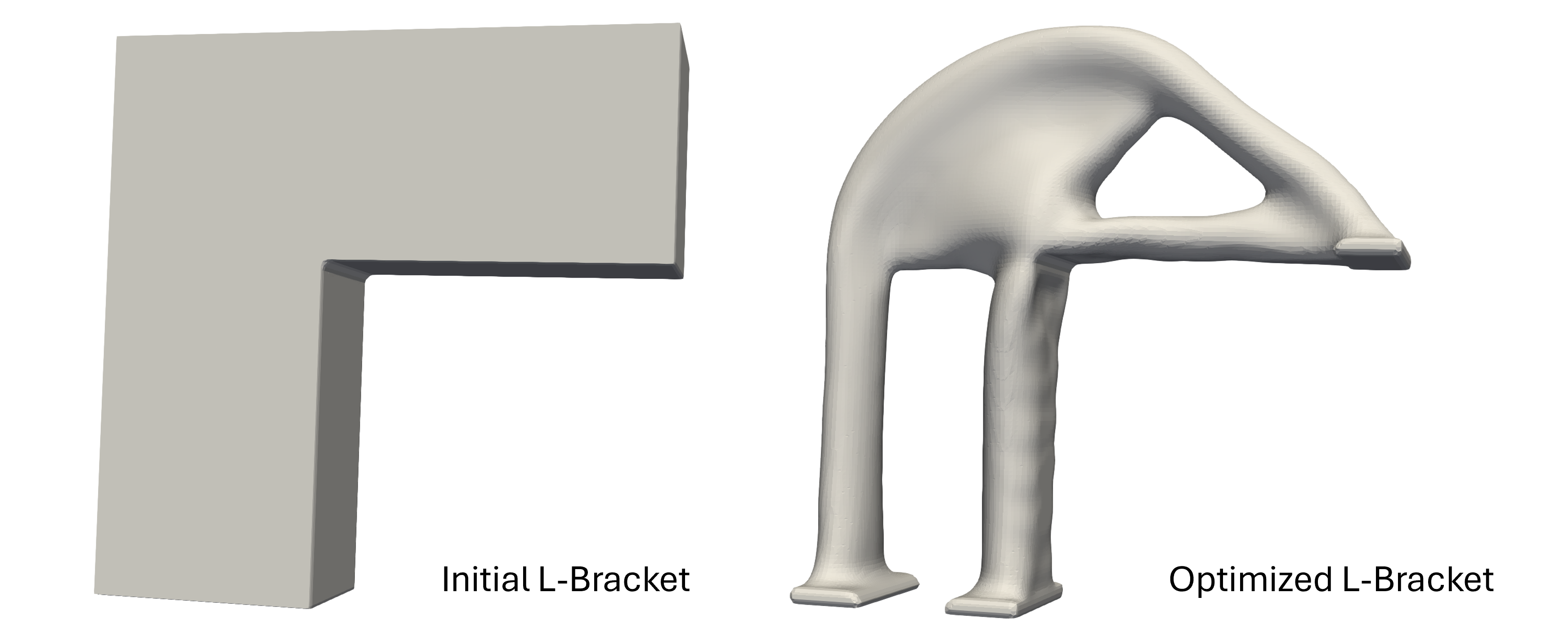

Stress Based L-Bracket Example

A complete example of performing a LevelOpt L-bracket stress-based optimization is available along with all geometry files: design geometry, restraint1, restraint2, load, and a reference final design.

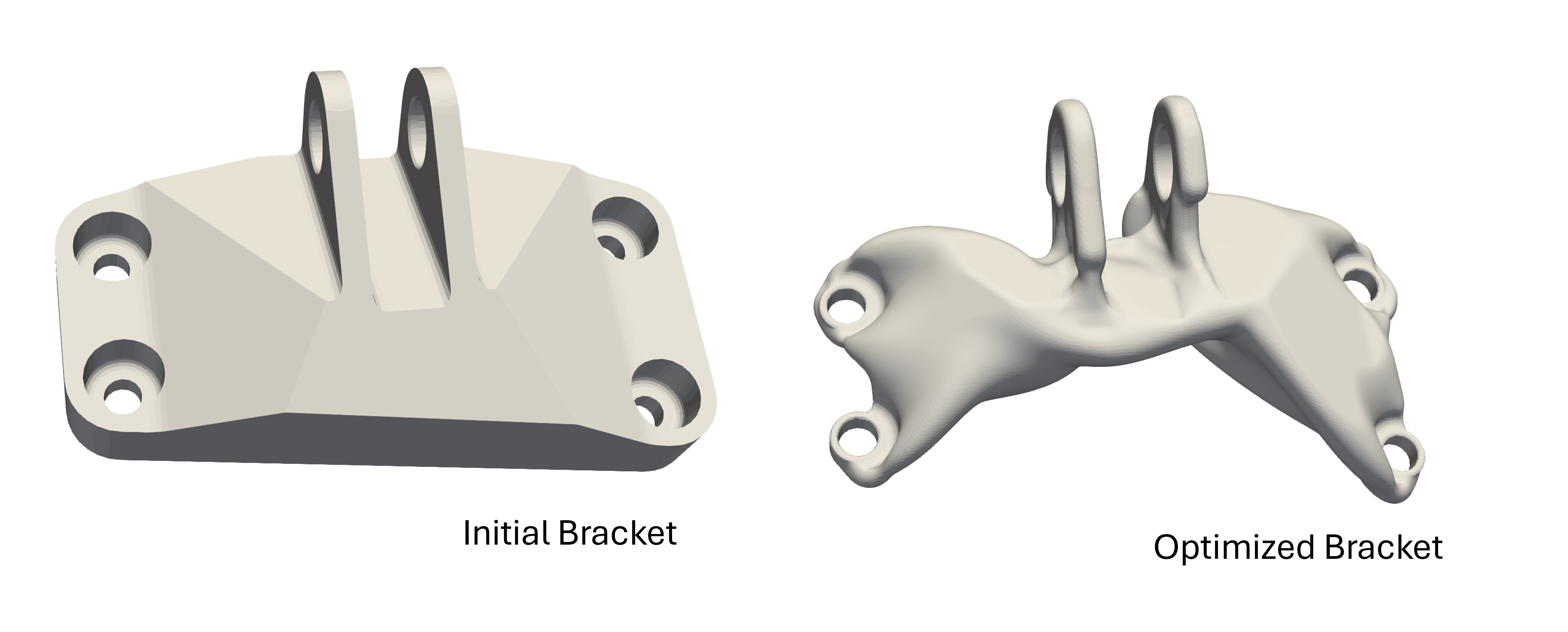

Stress Weighting Example

A complete example of performing a LevelOpt bracket optimization with weighted objectives is available along with all geometry files: bracket geometry, restraint, load1, load2, and a reference starting design.
