4.1: Uniform Temperature Bar

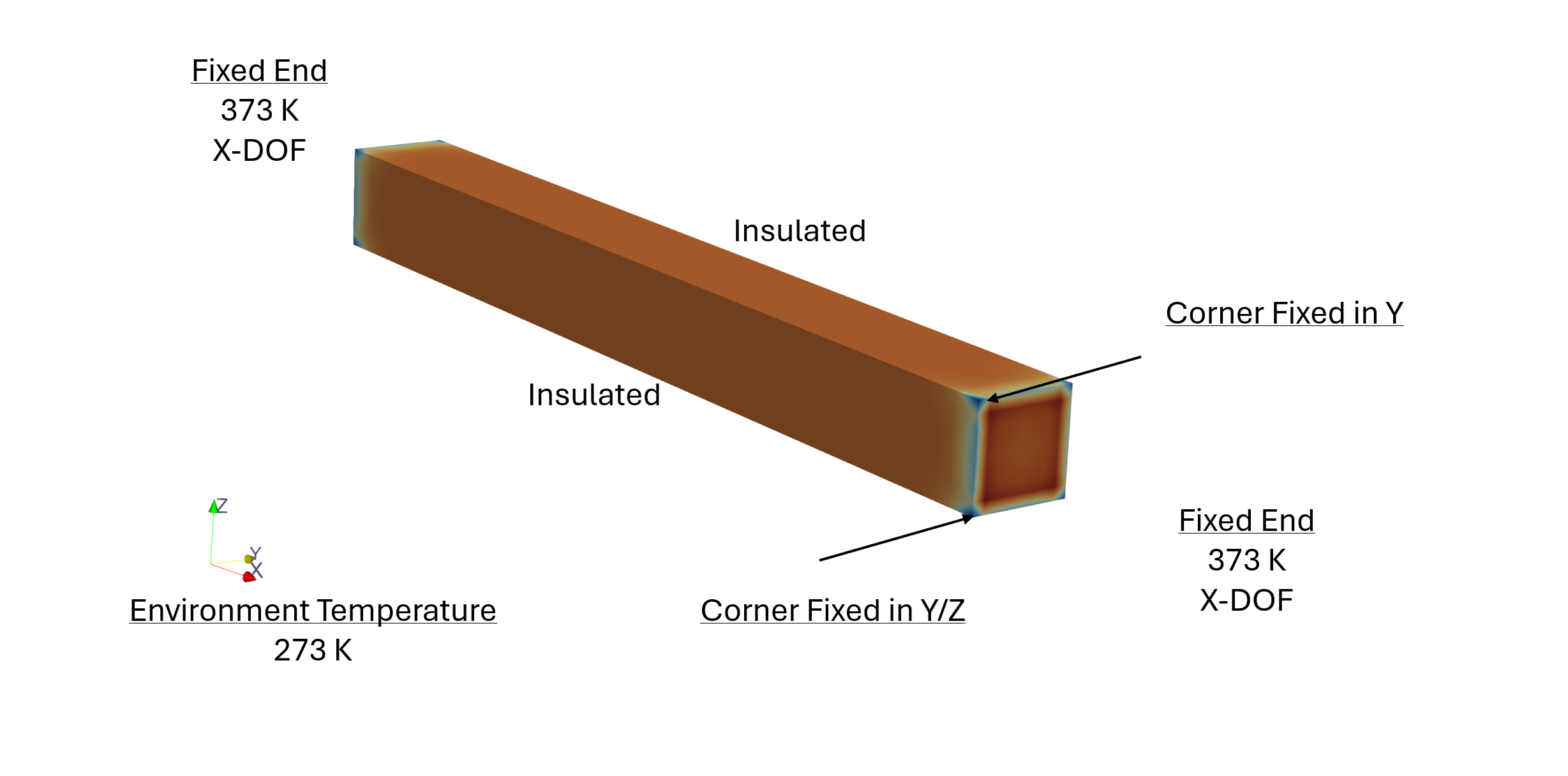

This problem studies a straight bar, with dimensions of 1x1x10 mm.

../../../_images/benchmark5-1-setup.png

Results

Uniform Temperature Bar

Reference

Intact Direct Solver [%Error]

Intact Iterative Solver [%Error]

Stress xx (Pa)

2.52E+08

2.516E+08 [0.1587%]

2.517E+08 [0.119%]

Time (s)

1.967

7.626
