3.3: Cylinder with Convection¶

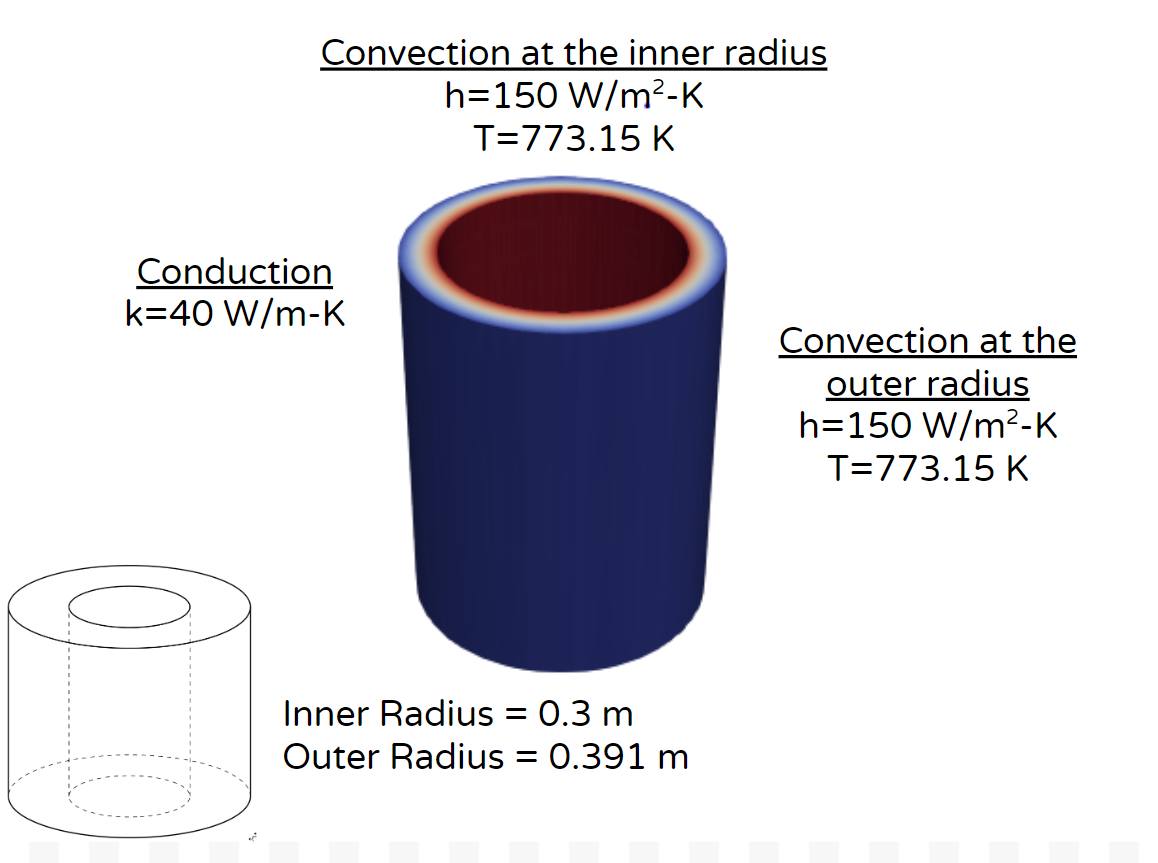

Geometry, Material, and Boundary Conditions¶
Inner and outer surfaces have convection prescribed.
Results¶
Reference results from [12]
Cylinder with Convection¶
Reference |
1000 DOF |
10000 DOF |
100000 DOF |
Time (s) <1% error |
|
|---|---|---|---|---|---|
Inner Surface (K) |
545.45 |
547.0 [0.28%] |
545.9 [0.07%] |
545.7 [0.05%] |
1.0 / 1.0 / 33.4 / 7.5 |
Outer Surface (K) |
478.25 |
476.5 [0.37%] |
477.3 [0.20%] |
477.4 [0.17%] |
|
Inner Flux (W/m²) |
34,160 |
30,946 [9.41%] |
32,817 [3.93%] |
33,594 [1.66%] |
|
Outer Flux (W/m²) |
26,280 |
27,961 [6.40%] |
26,939 [2.51%] |
26,502 [0.84%] |
