2.2: Clamped Square Plate¶
Geometry and Boundary Conditions¶

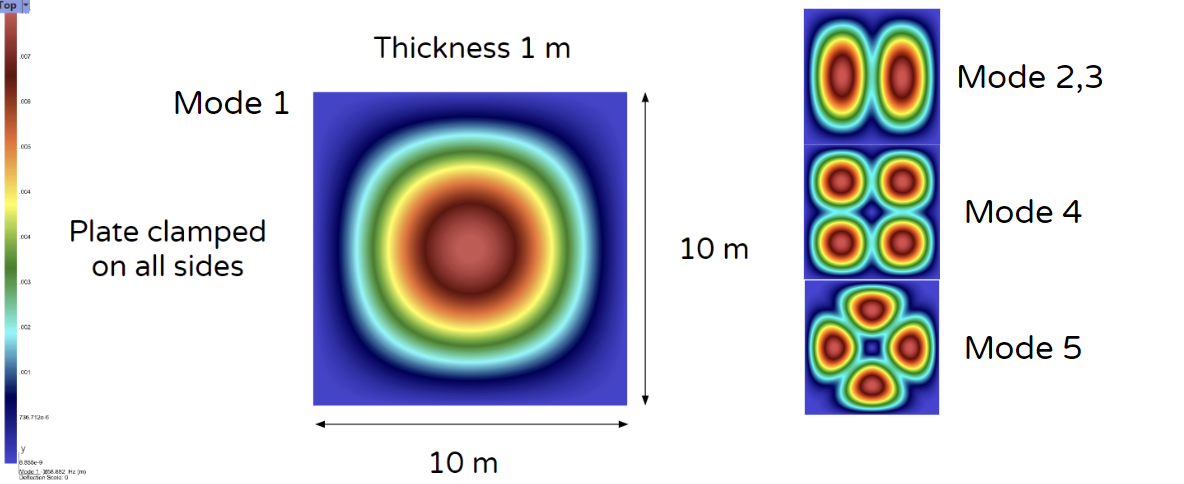

Square plate clamped on all sides
Material¶
Isotropic material with:
E = 2.4e+9 Pa
ν = 0.35
Density = 1020 kg/m³
Results¶
Reference results from [2]
Frequency (rads/sec) after normalization as stated in [2]¶
Mode |
Reference |
Intact Direct Solver [%Error] |
Intact Iterative Solver [%Error] |
Time (s) to solve with <3% error |
|---|---|---|---|---|
1 |
1.51E+2 |
1.54E+02 [2.23%] |
1.54E+02 [2.23%] |
|
2,3 |
2.89E+2 |
2.94E+02 [1.79%] |
2.94E+02 [1.79%] |
|
4 |
4.05E+2 |
4.12E+02 [1.72%] |
4.12E+02 [1.72%] |
|
5 |
4.77E+2 |
4.86E+02 [1.79%] |
4.86E+02 [1.79%] |
Direct: 17.2 / Iterative: 14.9 |
