Intact.Simulation for nTop Manual

Intact.Simulation offers a revolutionary meshing-free finite element method now fully integrated with nTop, enabling users to explore their design space rapidly without the usual meshing bottlenecks. This advanced technology is particularly adept at handling large geometric complexities, such as intricate lattice structures, which are often challenging to mesh using traditional finite element analysis (FEA) methods.

Key features and capabilities

• Geometry Support

  • Implicit

  • Brep

• Physics Support

  • Stress

  • Thermal

  • Modal (Coming Soon)

1. Getting Started

1.1 Installation and Accessing Intact inside nTop

1. Download and install Intact Simulation for nTop

   1. You will receive download info and trial license in the email after applying for beta.

   2. Default Installation directory (Intact Directory): C:\Users\$username$\AppData\Local\Programs\Intact.Simulation for nTop

   3. Documentation and Example files are in

      C:\Users\$username$\AppData\Local\Programs\Intact.Simulation for nTop\Getting Started

2. Move custom Intact blocks to nTop’s My Blocks folder directory

   1. Go to: nTop menu > File > My blocks folder

   2. Copy Intact custom blocks from C:\Users\$username$\AppData\Local\Programs\Intact.Simulation for nTop\Custom Blocks to nTop’s My Blocks folder.

3. Restart nTop. Now you can access Intact Blocks within nTop by Searching “Intact“

1.2 Example Simulations

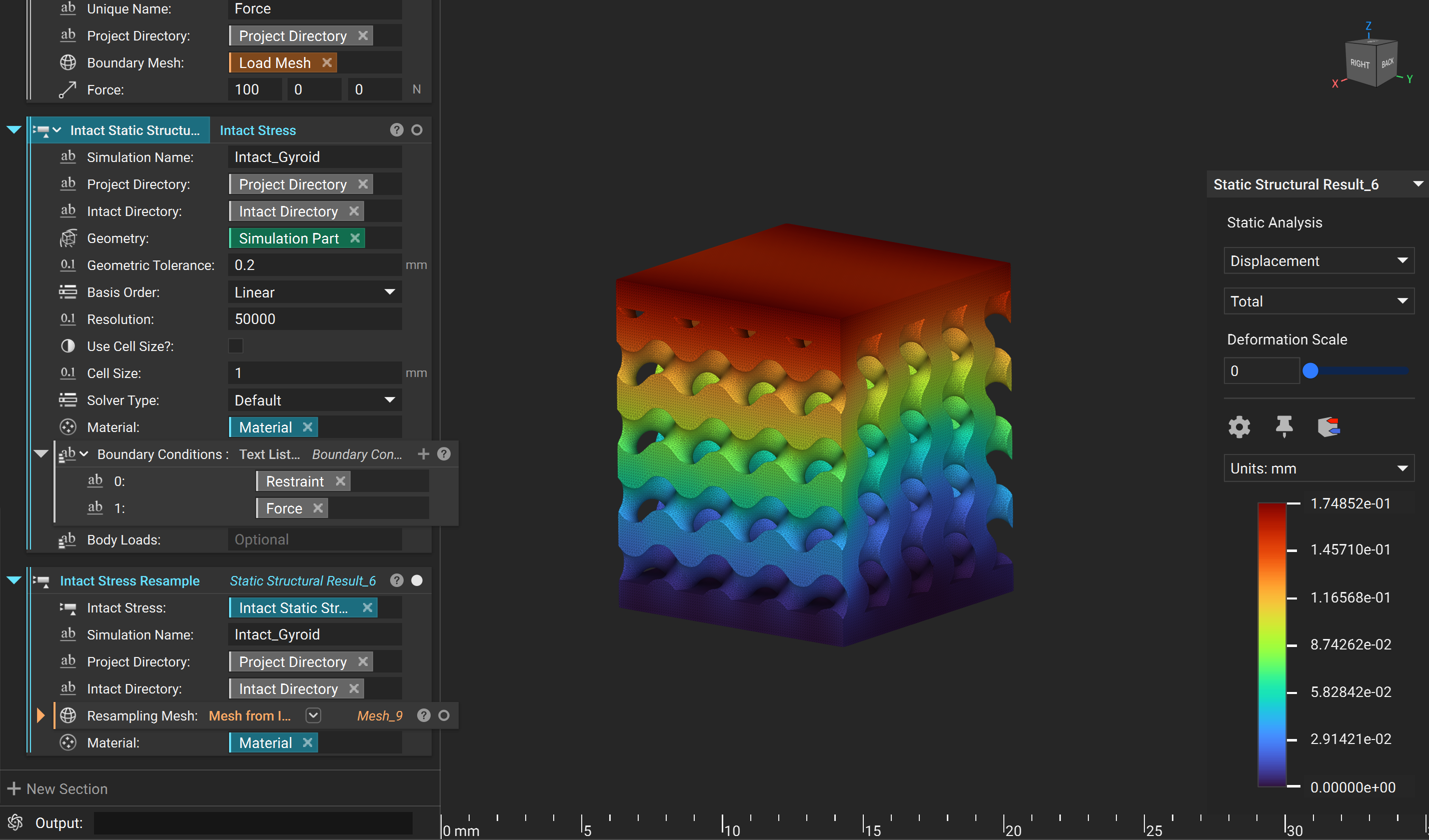

📌 See the file Example_GyroidShear.ntop in the Getting Started folder. Update the Intact Dir and Project Dir variables.

Change the parameter Gyroid Cell Size to automatically update the simulation results.

2. How To Guide

The high-level workflow of nTop-Intact Integration. Intact requires the inputs needed for any typical structural FEA such as geometry, material, boundary conditions, and simulation settings.

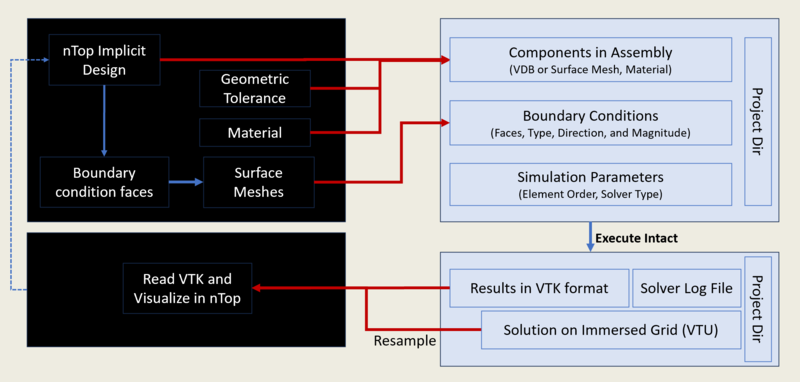

Figure: Black boxes are nTop blocks. Blue boxes are Intact custom blocks

2.1 Intact Stress Custom Block

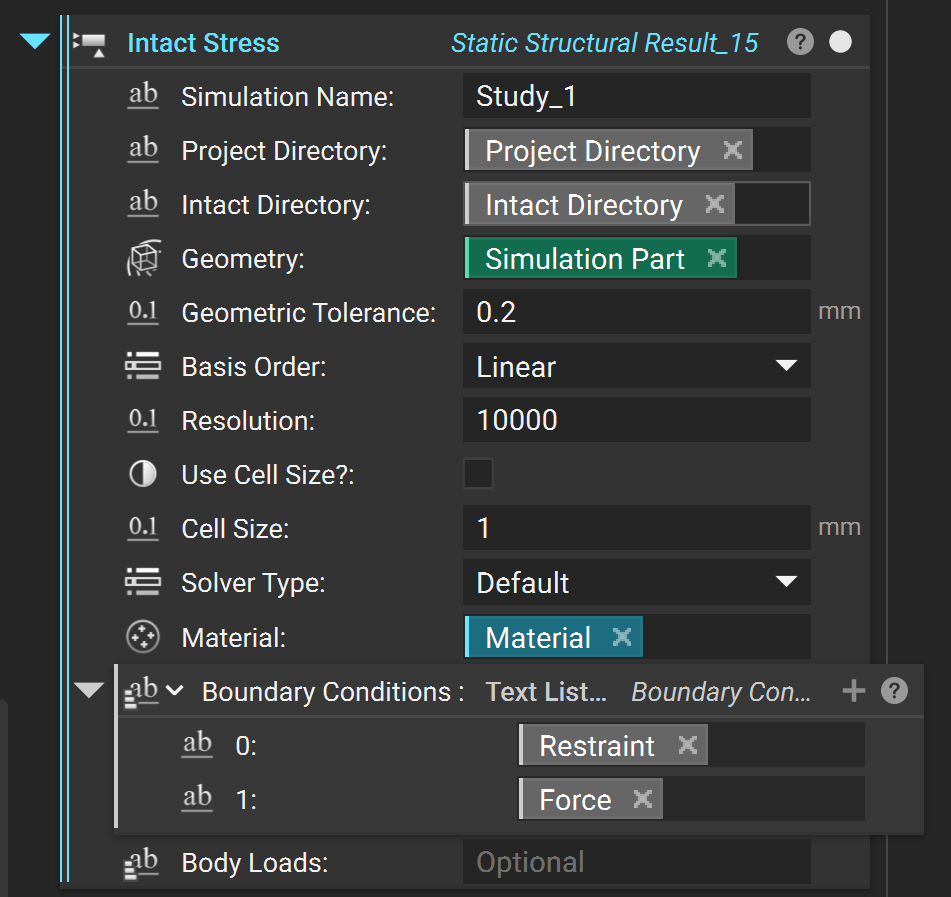

First import the Intact Stress block for directly analyzing an implicit geometry or Intact Stress (Surface Mesh) for analyzing a Brep (surface mesh) geometry.

Before setting up the simulation, set up the folders and simulation name.

• Simulation Name: A name for your simulation.

• Project Directory: A directory to save the simulation

• Intact Directory: Directory where Intact Program lives. The default is in the following folder in your AppData (replace \(username\) with your user name). C:\Users\$username$\AppData\Local\Programs\Intact.Simulation for nTop

2.2 Intact Thermal Custom Block

First import the Intact Thermal block for directly analyzing an implicit geometry or Intact Thermal (Surface Mesh) for analyzing a Brep (surface mesh) geometry.

Before setting up the simulation, set up the folders and simulation name.

• Simulation Name: A name for your simulation.

• Project Directory: A directory to save the simulation

• Intact Directory: Directory where Intact Program lives. The default is in the following folder in your AppData (replace \(username\) with your user name). C:\Users\$username$\AppData\Local\Programs\Intact.Simulation for nTop

2.3 Component Setup

Geometry

The simulation component consists of geometry and material.

• When using the Intact Stress block, the Geometry must be a nTop implicit model. Intact.Simulation can represent the implicit model as a VDB or Voxel Model: The VDB model efficiently stores the implicit field at the nodes of the voxel and interpolates the implicit field within the voxel. Voxel size is specified using the Geometry Tolerance ****parameter, which can be decided based on the minimum feature size as well as the level of accuracy desired.

• When using the Intact Stress (Surface Mesh) block, the Geometry must be a Surface Mesh.

Recommendation: It is generally recommended to use VDB or Voxel Model, unless the geometry is predominantly CAD-like with edges and corners, in which case surface tessellation could be faster.

Material

Material is defined using nTop’s Isotropic Material block with Isotropic Linear Elastic Properties.

2.4 Boundary Conditions (Stress)

Restraints

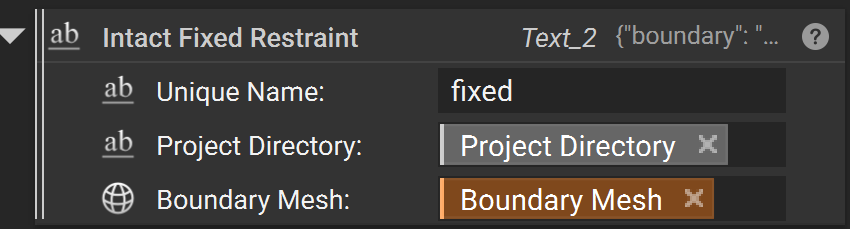

• Intact Fixed Restraint

  A “Fixed Boundary” restraint fixes the selected geometry in all directions. The fixed boundary only has one input:

  • Unique Name

  • Project Directory

  • Boundary Mesh surface to be fixed (must be a surface mesh)



• Intact Displacement Restraint

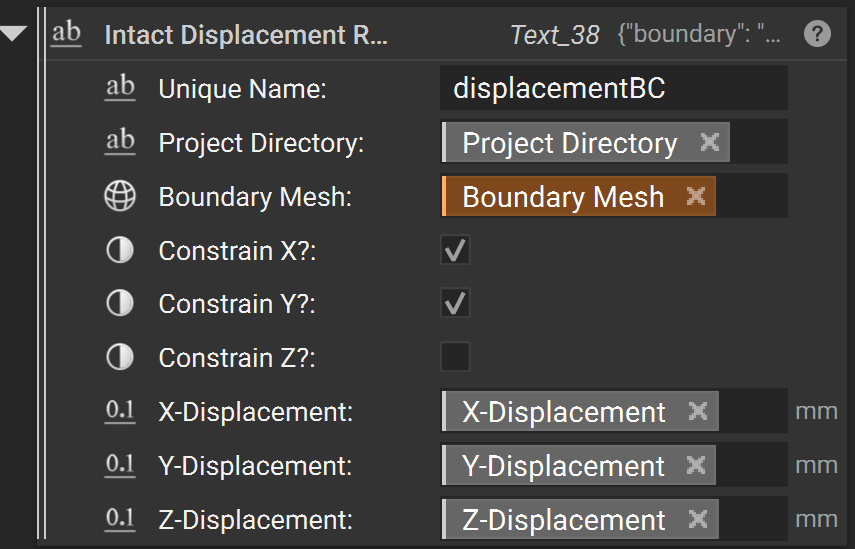

  A “Fixed Vector” restraint allows for each direction to be optionally set to a specified displacement value, 0 being fixed and ‘None’ being un-restrained. Note that a structural problem must have all three directions restrained somewhere to be valid. Also, note that this boundary condition doesn’t take custom units and it’s always in the units of the scenario metadata.

  A fixed vector requires the following inputs:

  • Unique Name

  • Project Directory

  • the Mesh Boundary surface to be fixed

  • the *_Displacement magnitude with distance units to set the displacement for the *-axis direction (ignored if the toggle is off)

  In the example below, the Z-axis is considered “free” and thus the z-displacement value is ignored/replaced by ‘null’ regardless of its input.



Structural Loads

• Pressure

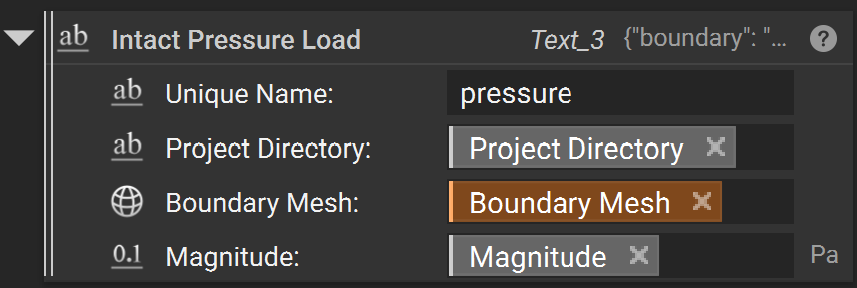

  A “Pressure” load is a surface load specified in terms of force per unit area. Positive pressures ‘push’ into the surface, and negative pressures ‘pull’.

  A Pressure Load requires three inputs:

  • Unique Name

  • Project Directory

  • the boundary surfaces where the load is applied

  • the UnitSystem that applies to the magnitude - needs to be specified before the magnitude is set (default MKS)

  • the Magnitude of the pressure with units (e.g. ‘Pa’ for Pascal).

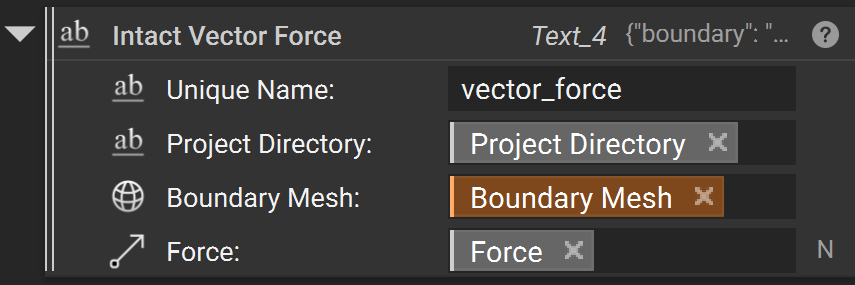

• Vector Force

  “Vector Force” load is a surface load applied to a face in a specified direction. An example of this load is pressing on the top of a book to push it across a table.

  A vector load requires four inputs:

  • Unique Name

  • Project Directory

  • the Boundary Mesh surfaces where the load is applied

  • the Force vector with force units (e.g. ‘N’ for Newton)



• Moment Load

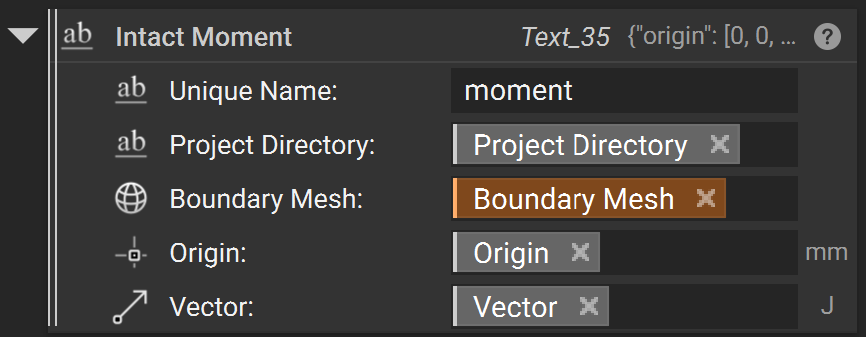

  “Moment” load is a surface load that applies a twisting force around an axis. The direction of the moment is determined using the right-hand rule: using your right hand, point your thumb in the direction of the axis. A positive moment value applies a moment acting in the direction the fingers of your right hand would wrap around the axis. The moment load is applied among the load faces with a distribution that varies linearly from zero at the axis.

  A Moment load requires five inputs:

  • Unique Name

  • Project Directory

  • the Boundary Mesh surfaces where the load is applied

  • Origin is the starting point of the axis of rotation

  • the Vector which species the axis of rotation and the magnitude with units (e.g. ‘N*m’ for Newton-Meter).



• Bearing Force

  A “Bearing Force” is a surface load applied to a (typically) cylindrical face to approximate the effects of a shaft pressing against the side of a hole. The applied force gets converted to a varying pressure distribution on the portion of the face experiencing compressive pressure. The pressure distribution is computed automatically to achieve the specified overall bearing force.

  A Bearing Force requires three inputs:

  • Unique Name

  • Project Directory

  • the Boundary Mesh surfaces where the load is applied

  • the Direction Vector of the bearing force

  • the Magnitude of the load with force units (e.g. ‘N’ for Newton)



  Body Loads

• Acceleration Load

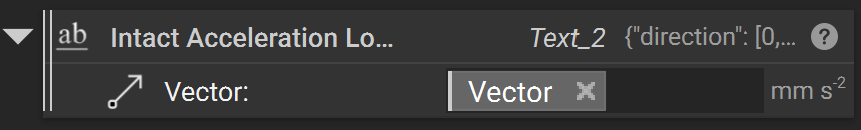

  An “Acceleration” load is a linear acceleration body load which acts on the entire component/body.

  An Acceleration Load requires a single input:

  • the Vector of the acceleration which describes both the direction and magnitude of acceleration with units (e.g. ‘m/s^2’)



2.5 Boundary Conditions (Thermal)

Restraints

• Temperature Restraint (Fixed Temperature)

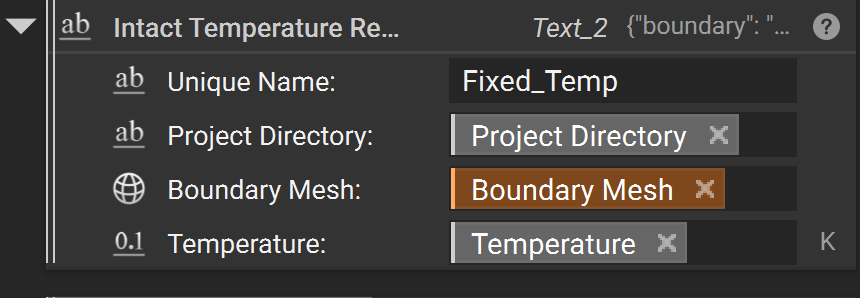

  A “Temperature Restraint” restraint fixes the temperature of a selected geometry to a set value. The fixed boundary custom block has four inputs:

  • Unique Name

  • Project Directory

  • Boundary Mesh surface to be fixed (must be a surface mesh)

  • Temperature



Thermal Loads

• Surface Flux

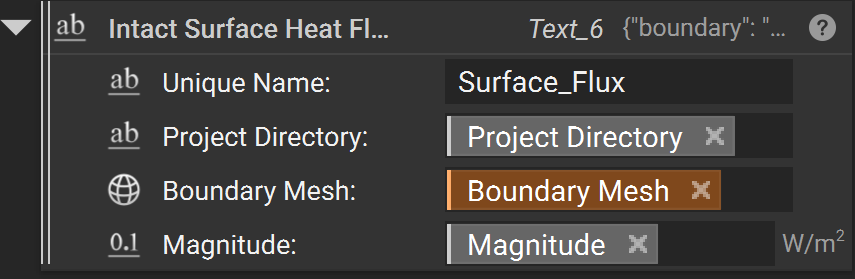

  A “Surface Flux” load is a surface load specified in terms of power per unit area.

  A Surface Flux Load block requires four inputs:

  • Unique Name

  • Project Directory

  • the Boundary Mesh surfaces where the load is applied

  • the Magnitude of the flux with units (e.g. ‘W/m^2’)



• Convection

  A “Convection” load specifies the transfer of heat from a surrounding medium.

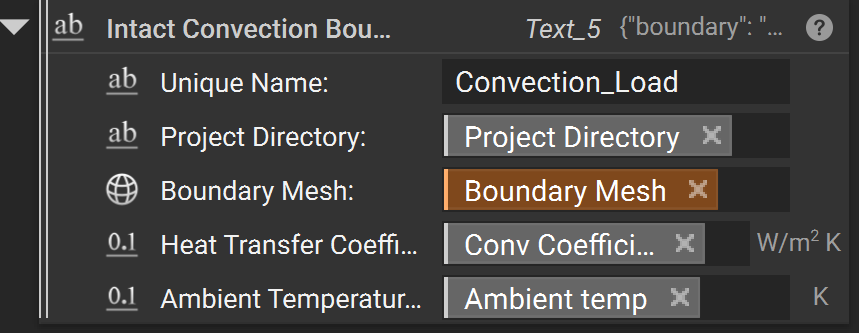

  A convection load requires five inputs:

  • Unique Name

  • Project Directory

  • the Boundary Mesh surfaces where the load is applied

  • the Heat Transfer Coefficient with units (e.g. ‘W/m^2)

  • the Ambient Temperature of the medium with units of temperature (e.g. ‘K’)



  Thermal Body Loads

  • Volumetric Heat Generation

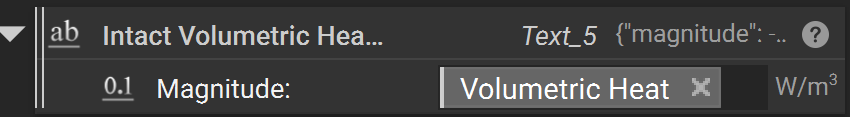

  A “volumetric heat generation” load is a flux body load which applies uniform heat generation all over the component (volume).

  Volumetric heat generation requires a single input:

  • the Magnitude of the flux with units (e.g. ‘W/m^3’)



2.6 Simulation Settings

Intact.Simulation allows customizations to support rapid coarse as well as accurate fine simulation as desired. The following Simulation Settings are available:

• The Basis order is the order of finite elements used. It can be Linear (default) or Quadratic.

  • Note that with quadratic elements, far fewer elements are needed to compute an accurate solution. However, quadratic elements are much more expensive in terms of time and memory resources than linear elements.

  • Recommendation:

    • Quadratic elements are suited for bending dominant problems like thin shells and beam-type structures.

• Specify Precision Type and Precision Value for the desired accuracy/speed of the simulation.

  • Resolution is the target number of finite elements. An iterative process determines a Cell size that achieves approximately the specified number of elements. The simulation log in the Project directory contains the exact cell size and number of finite elements used in the simulation.

  • You can toggle on Use Cell Size? to directly specify the Cell Size instead of the Resolution, for example, when you want to resolve the correct behavior of certain geometric features. Note that when Use Cell Size? is On, Resolution is ignored.

  • The immerse grid for the simulation is stored in _solution.vtu in the project folder and can be visualized if desired (using Paraview).

  • Recommendation:

    • We recommend using Resolution if you are unsure of the cell size. A small Cell Size can quickly result in a large number of finite elements and long solve times.

• Solver Type is the linear solver used in the simulation with the following options:

  • Direct “directly” solves the linear system and is very robust but typically consumes more memory, which can be a problem for high resolution or small cell size.

  • Iterative solves the linear system “iteratively” and uses less memory than Direct. They are suited for high resolutions.

  • Default: Sets the solver automatically based on Basis order and Resolution .

    • For static structural Linear elements, default is Iterative Solver for resolution greater than 200K and Direct Solver for less than 200K. Note that if the Precision Type is cell size, the default is always Iterative for linear elements. Quadratic elements, it defaults to Direct solver for all resolutions or cell sizes.

    • Thermal solvers default to Direct, if desired Iterative can be manually selected for some cases which utilize large amounts of memory.

2.7 Result Visualization

Default Result Visualization

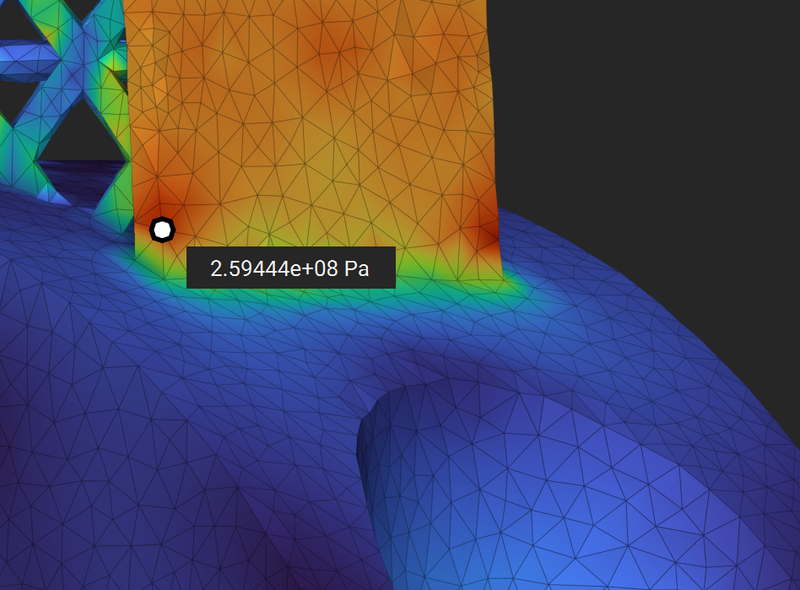

By default, the visualization produced by the Intact Stress block includes both Displacement and von Mises stress fields. These can be accessed like other simulation results in nTop. Currently, visualization is supported only on surface tessellation, even for implicit geometry (visualization directly on implicit is in work in progress). The default surface meshes for different geometric representations are as follows:

• Implicit/Voxel Model: Intact produces visualization on a surface mesh that represents the zero-level set as approximated by the voxel grid. You can also resample the solution on a higher-quality surface mesh for improved visualization.

• Brep (Surface Mesh): Visualization is done on the input surface mesh geometry.

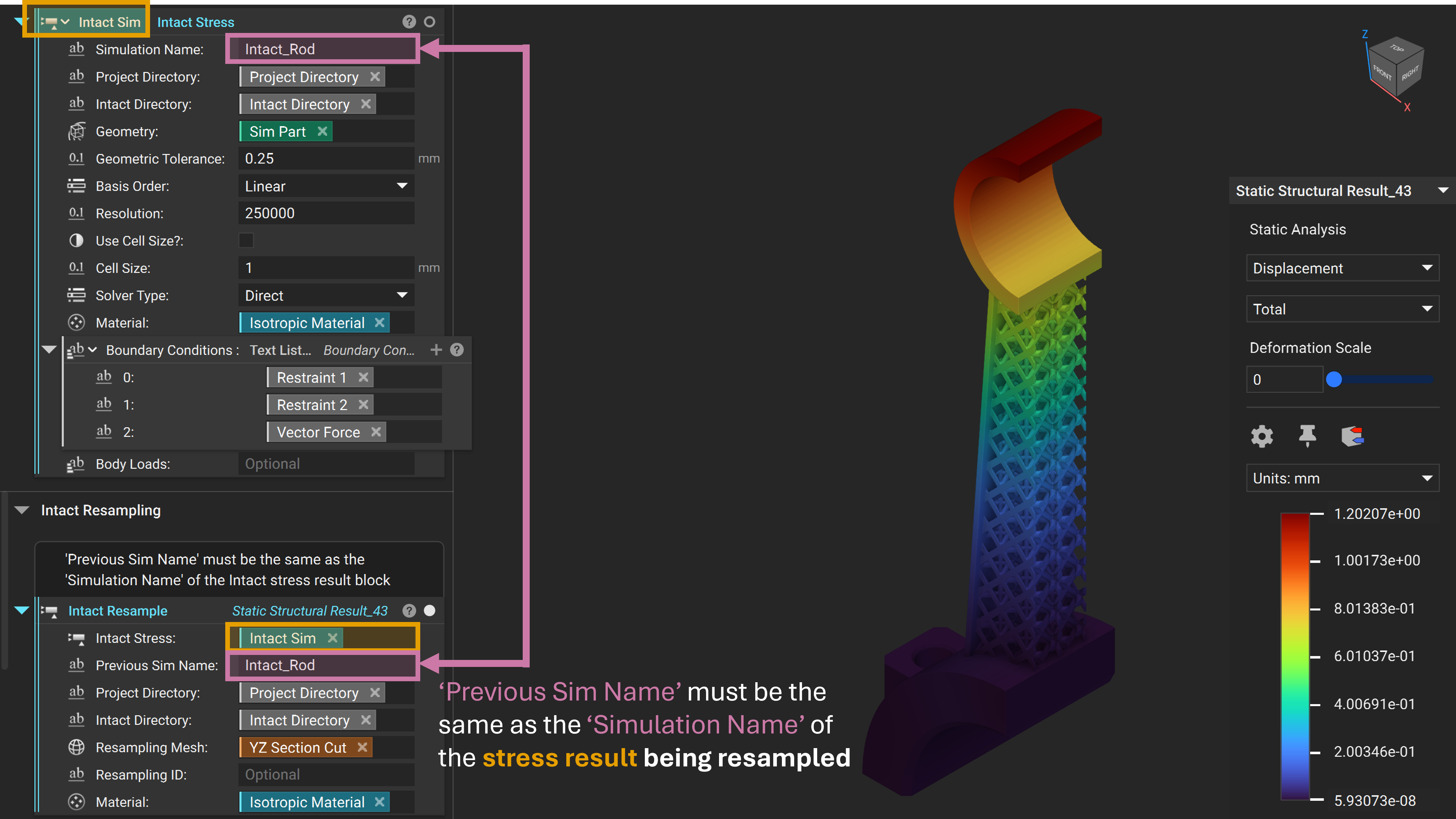

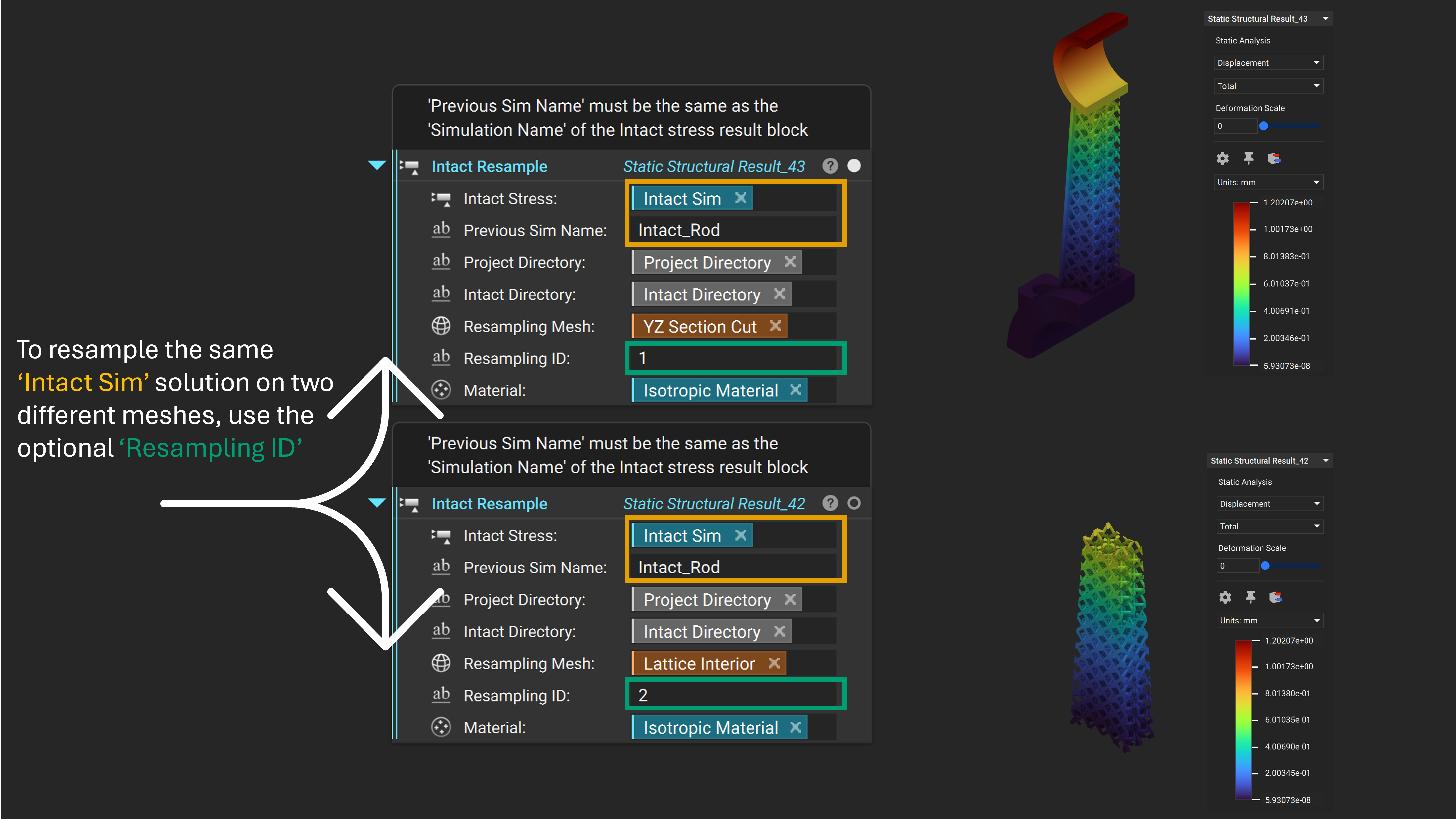

Resampling Immerse Grid Solution

The solution is computed on an immersed grid and can be interpolated within the grid cells. To resample an existing solution, use the Intact Resample block**.** Resampling can generate a better visualization or create slice/cross-section views.

• Intact Stress is the Intact Stress simulation being resampled

• Previous Sim Name: The name of the Intact Stress simulation being resampled

• Project Directory

• Intact Directory

• Resampling Mesh: The new mesh for resampling the FEA solution for visualization

• Resampling ID: An optional input which allows resampling the same Intact Stress simulation on multiple Resample Meshes

• Material: The material used for computing stresses (Should be the same as the Intact Stress simulation being resampled)

📌 For a resampling example see the file Example_StaticConnectingRod.ntop in the Getting Started\Static Structural folder. Update the Intact Directory/Project Directory variables and manually run the unloaded lattice block to generate the geometry.

3. Technology Overview

3.1 Immersed Method of Moments Overview

Immersed Method of Moments (IMM) is a technology that uses the Finite Element Analysis (FEA) for performing simulation tasks, without the need to build a conformal mesh. IMM adopts an immersed-grid methodology where the geometry is “immersed” in a non-conformal background grid; and our patent-pending moment-vector technology is used to compute geometry and material-dependent quantities (e.g., element quadrature) at runtime for the FEA.

Figure: Immersed method of moments: Geometry is immersed in a grid & solved using the method of moments.

The above picture captures the essence of IMM. The geometry (left image) is immersed in a background analysis grid (middle image). The elements in the analysis grid are conventional FEA elements (e.g., 8-noded hexahedral linear elements or 27-noded hexahedral quadratic elements), except that the quadrature used for the elements are computed using the method of moments. For instance, an element that is completely inside the the geometry will have quadrature that is different from an element that is only partially inside the geometry. After computing the solution on the analysis grid, the quantities of interest are projected back on to the native geometry (right figure).

3.2 Benchmarks

Complex Benchmark- Lightweight Piston Connecting Rod

This comparison is for a complex geometry with a lattice. The goal is to compare the displacement and stress results for a similar number of elements. The stresses are compared away from stress singularity as stresses in areas of stress concentration do not converge.

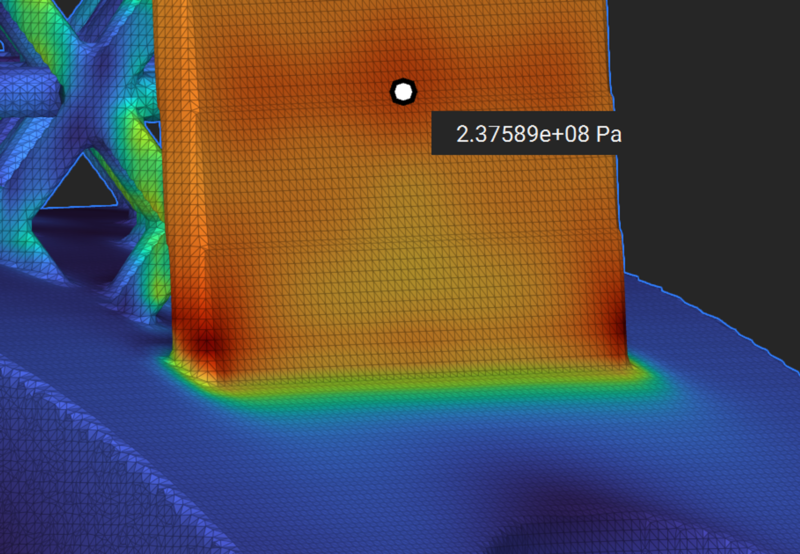

📌 See the file Example_StaticConnectingRod.ntop in the Getting Started\Static Structural folder. Update the Intact Directory/Project Directory variables and manually run the unloaded lattice block to generate the geometry.

	Number of Elements	Displacement (mm)	Total Time (secs)
nTop mesh-based FEA	330,000	1.18	215 (includes meshing)
Intact IMM FEA	300,000	1.20	229 (includes VDB export)

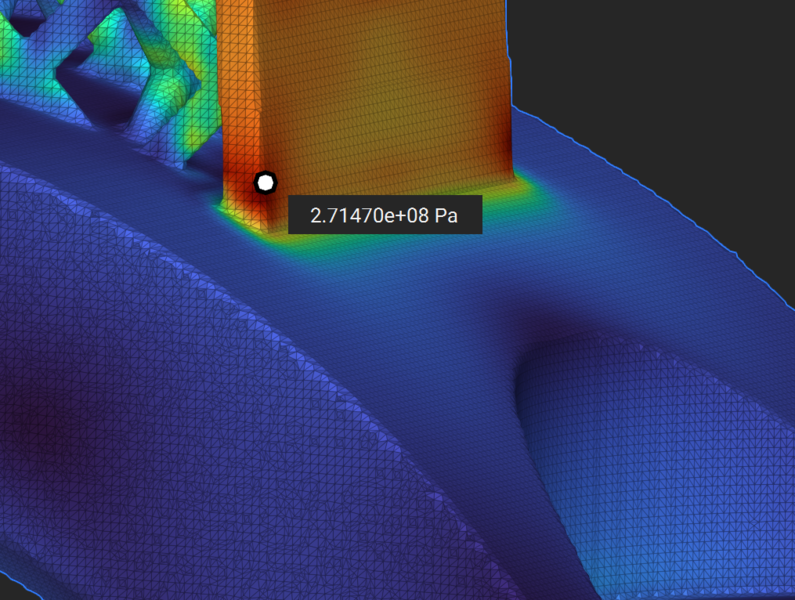

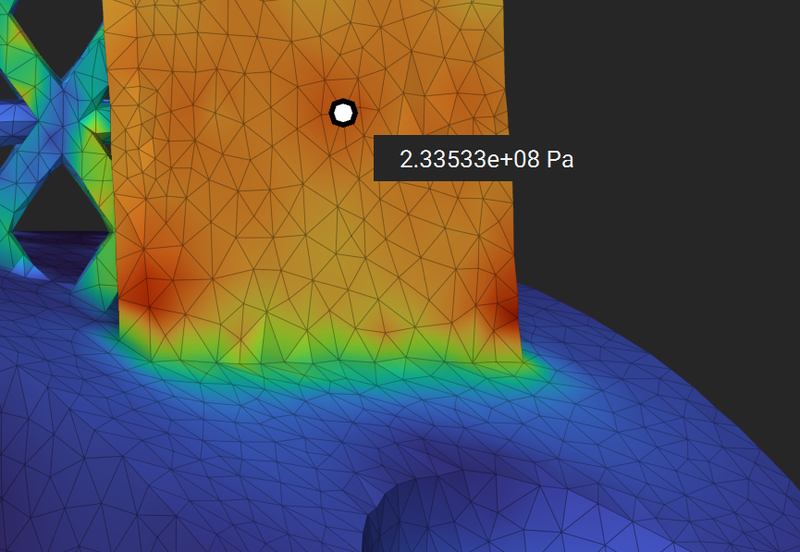

von Mises Stress comparison

Standard Benchmark- Beam

📌 See the file Benchmark_PlateWHole.ntop in the Getting Started\Static Structural folder. Update the Intact Directory/Project Directory variables and manually run any necessary unloaded blocks.

Displacement from Intact IMM vs nTop mesh-based FEA

	Analytical	nTop mesh-based FEA	Intact IMM FEA
Beam Bending	59.19 mm	58.98 mm	58.57 mm
Beam Twisting	-	15.78 mm	15.77 mm

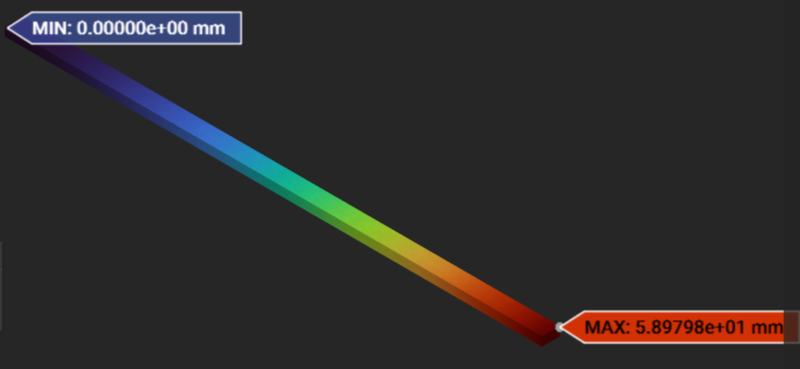

Beam Bending - nTop mesh-based:

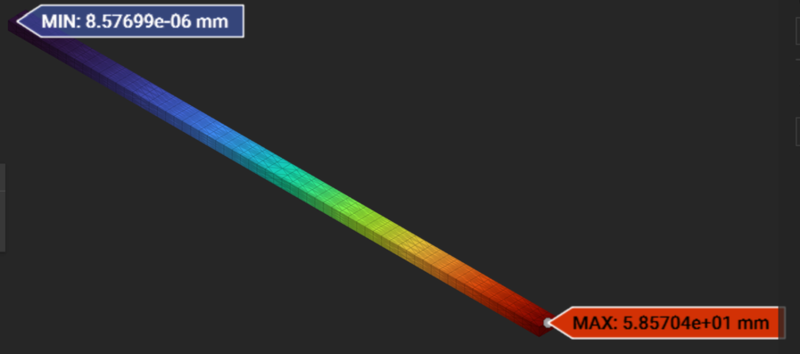

Beam Bending - Intact:

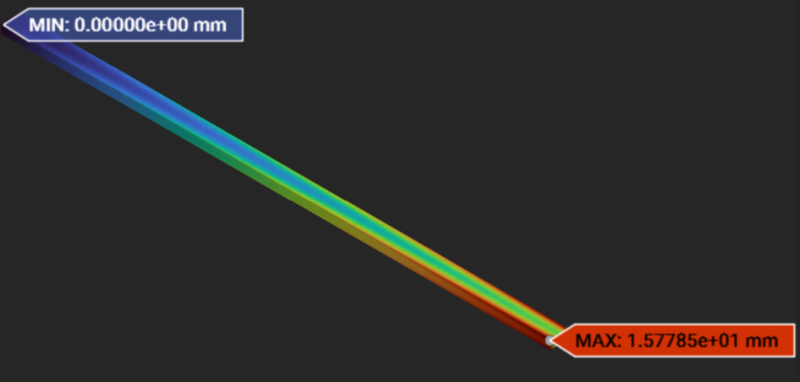

Beam Twisting - nTop mesh-based:

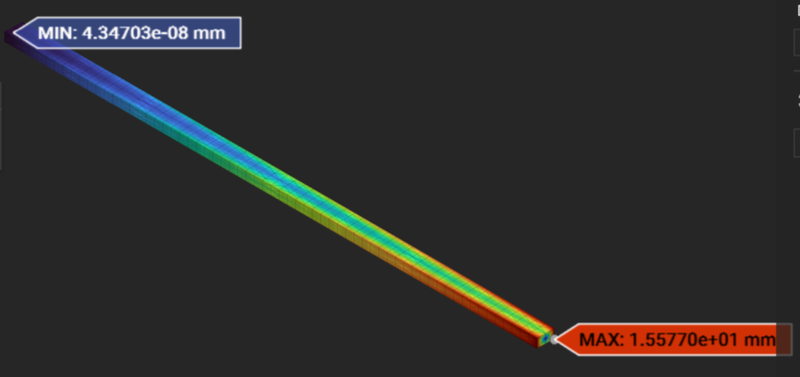

Beam Twisting - Intact:

Standard Benchmark- Plate with a Hole

📌 See the file Benchmark_PlateWHole.ntop in the Getting Started\Static Structural folder. Update the Intact Directory/Project Directory variables and manually run any necessary unloaded blocks.

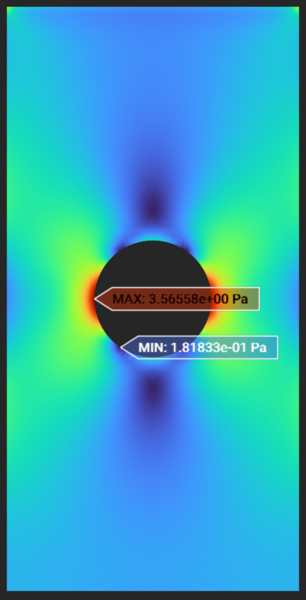

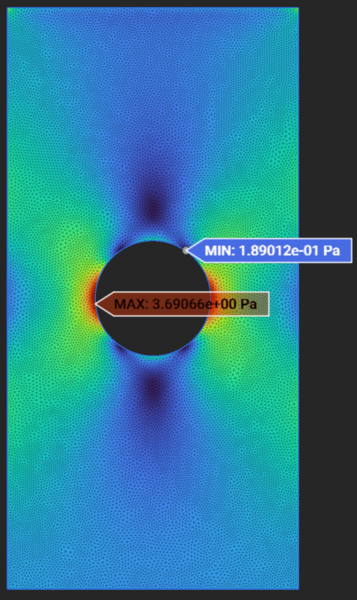

The figure below compares stress concentration due to the hole in a plate as obtained from mesh-based FEA and Intact IMM FEA.

The theoretical stress concentration (Stress XX) value can be computed using the analytical formulation for the stress concentration factor given as (d is hole diameter and W is plate width)

The above formula leads to a Kt = 2.233 and the resulting theoretical stress concentration value 3.72 Pa .

Standard Thermal Benchmark - Cylinder with Convection

📌 See the file Benchmark_ThermalCylinder.ntop in the Getting Started\Thermal folder. Update the Intact Directory/Project Directory variables and manually run any necessary unloaded blocks.

	Reference*	nTop mesh-based FEA	Intact IMM FEA
Inner Temperature (K)	545.45	545.36	545.44
Outer Temperature (K)	478.25	477.96	477.66
Inner Convection (W/m^2)	34,160	33,294	33,605
Outer Convection (W/m^2)	26,280	27,164	26,478

*Societe Francaise des Mecaniciens. Guide de validation des progiciels de calcul de structures. Paris, Afnor Technique, 1990. Test No. TPLA03/89.

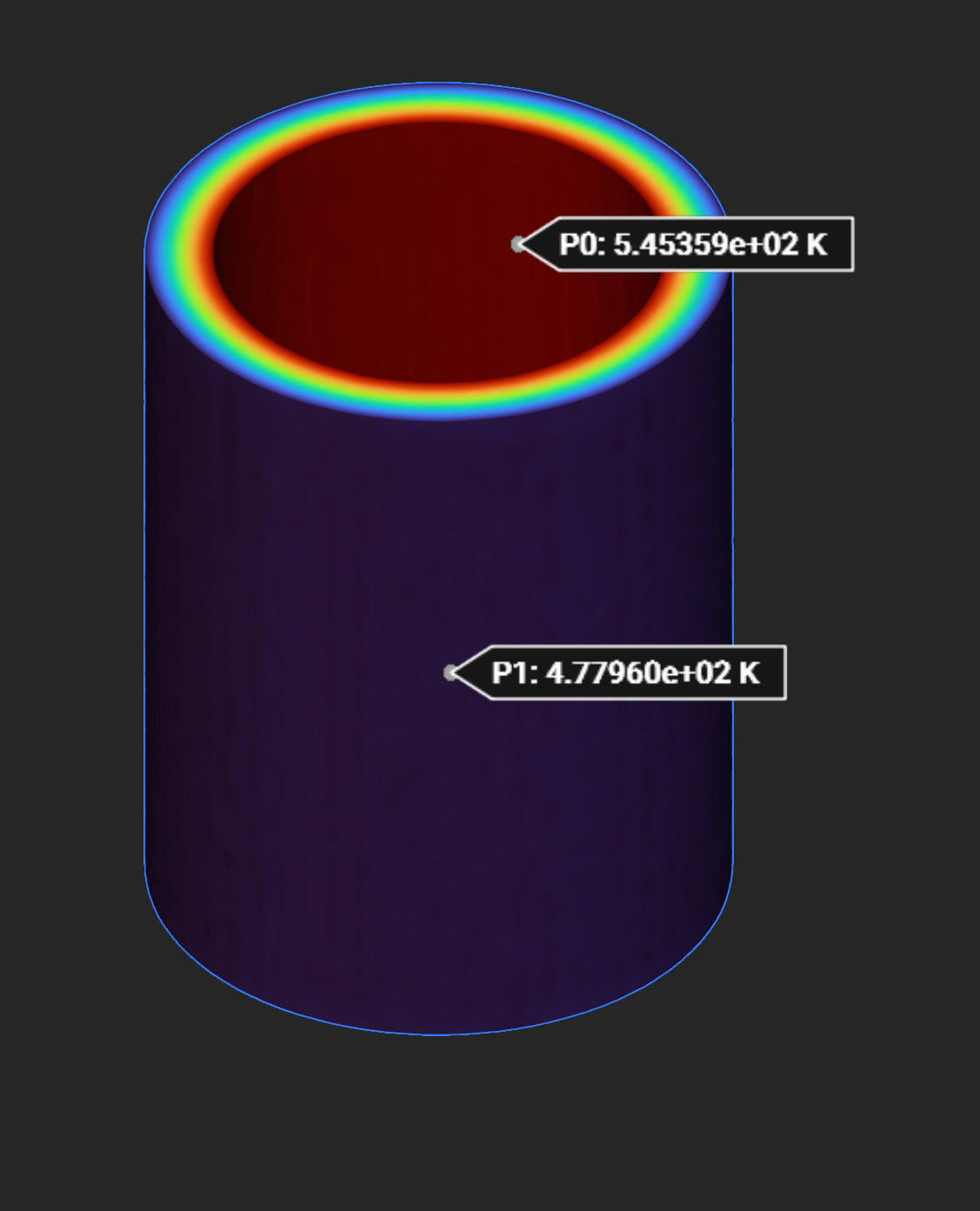

Temperature - nTop mesh-based:

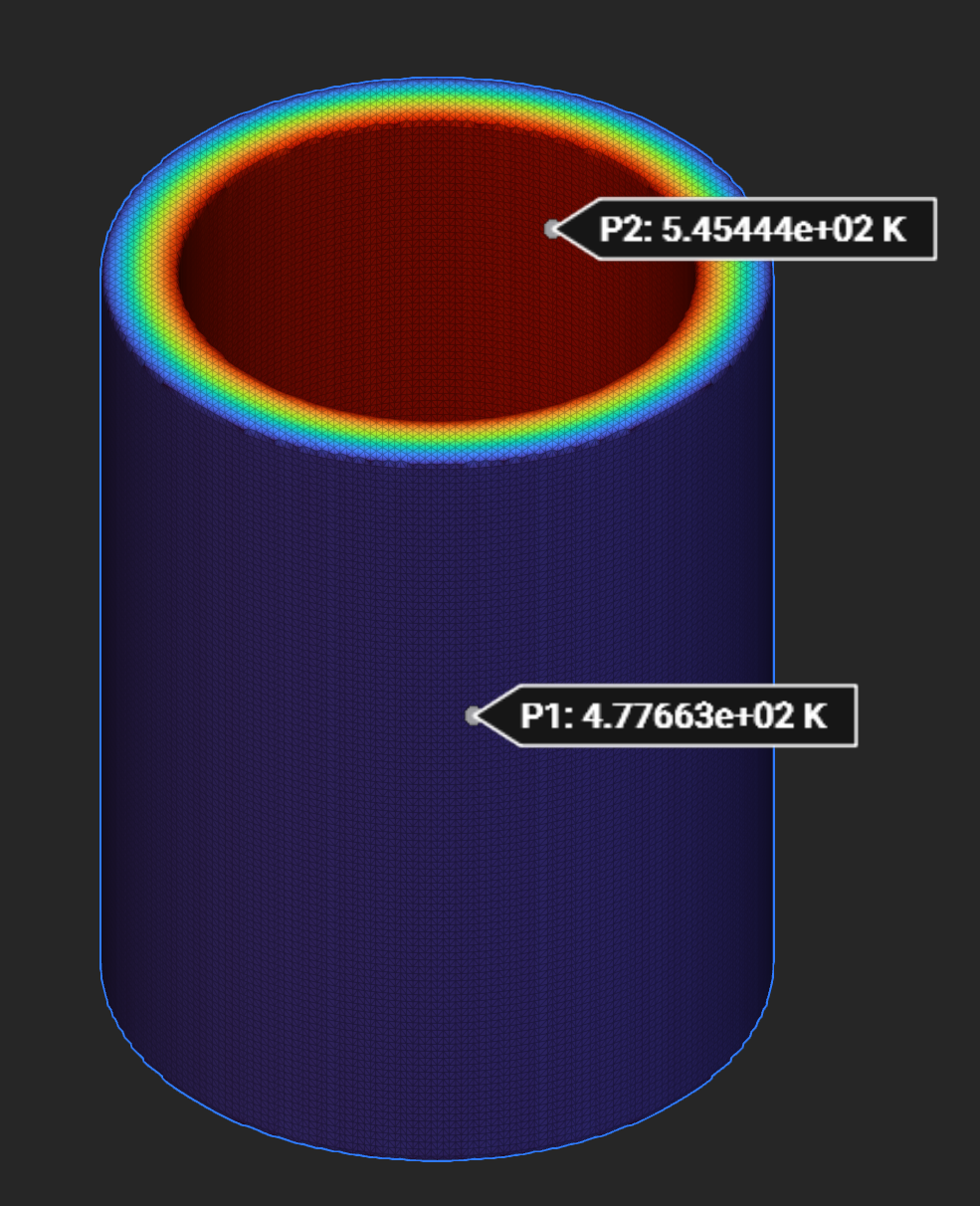

Temperaure - Intact:

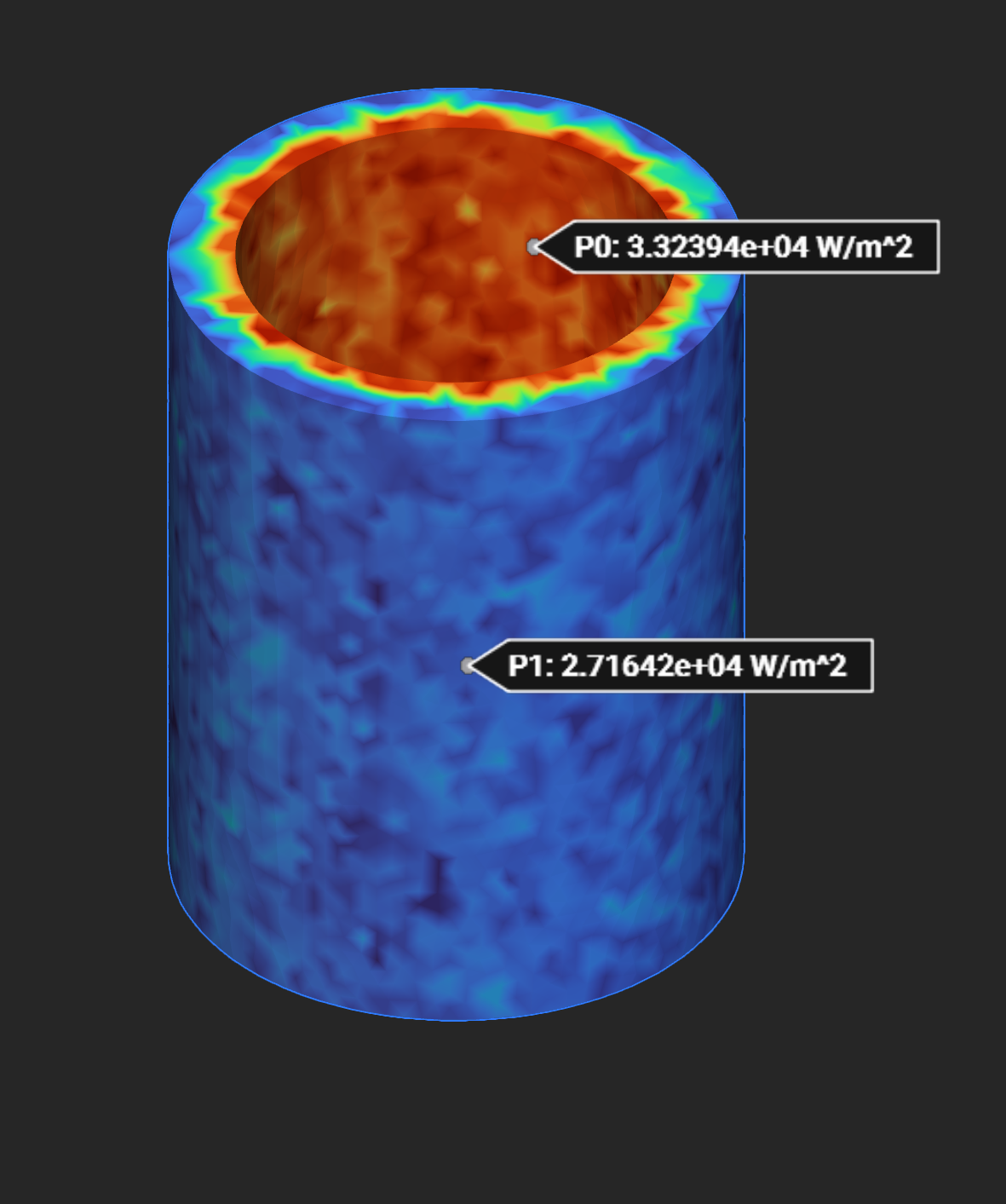

Heat Flux - nTop mesh-based:

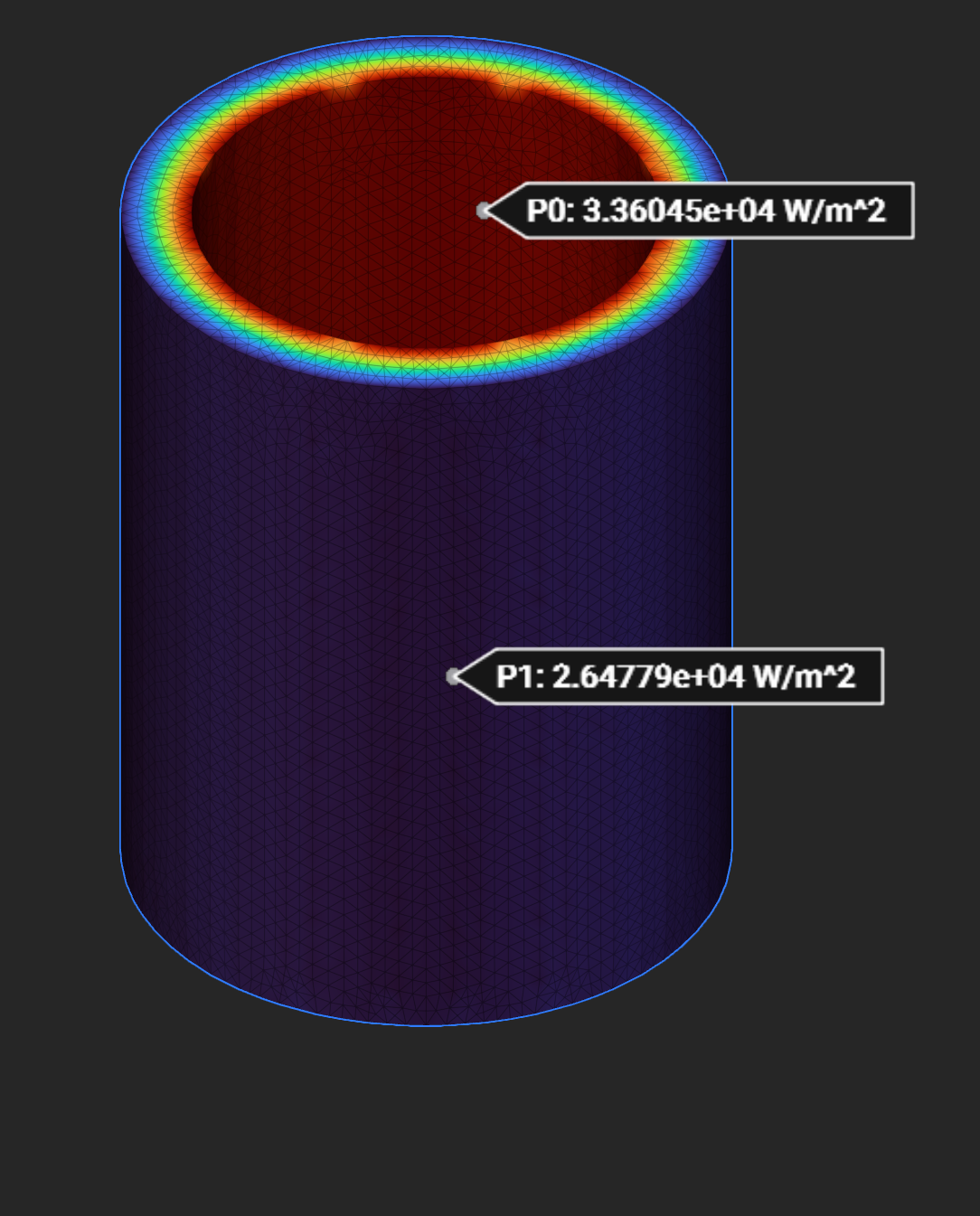

Heat Flux - Intact:

Complex Thermal Benchmark - Gyroid Heat Sink

📌 See the file Example_ThermalHeatSink.ntop in the Getting Started\Thermal folder. Update the Intact Directory/Project Directory variables and manually run any necessary unloaded blocks.

	# of Elements	Max/Min Temp (K)	Total Time (secs)	Local Flux (W/m^2)
nTop mesh-based FEA	293,625	400/306	215 (includes meshing)	3.86e5
Intact IMM FEA	312,831	400/305	76	4.22e5

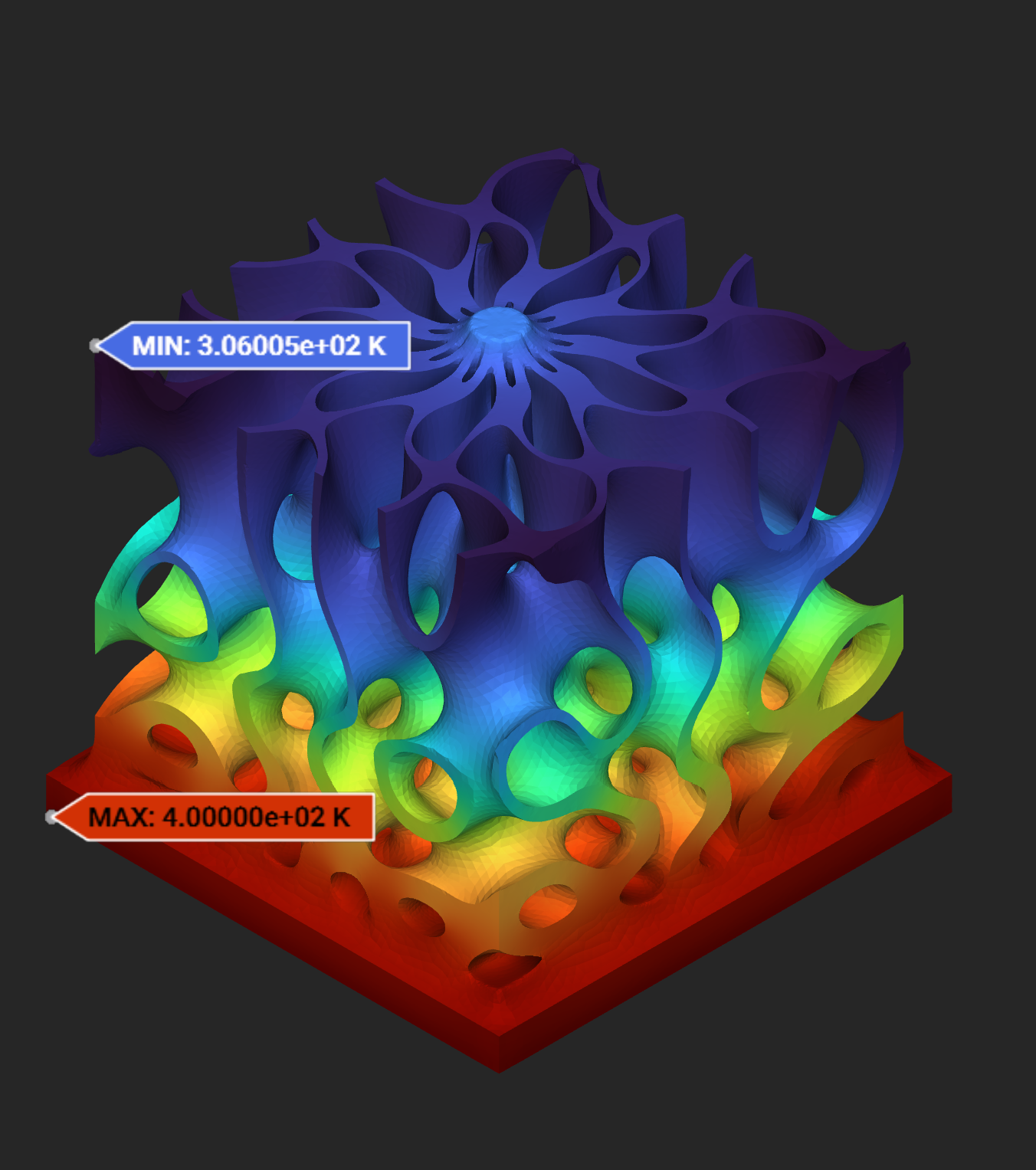

nTop Temperature:

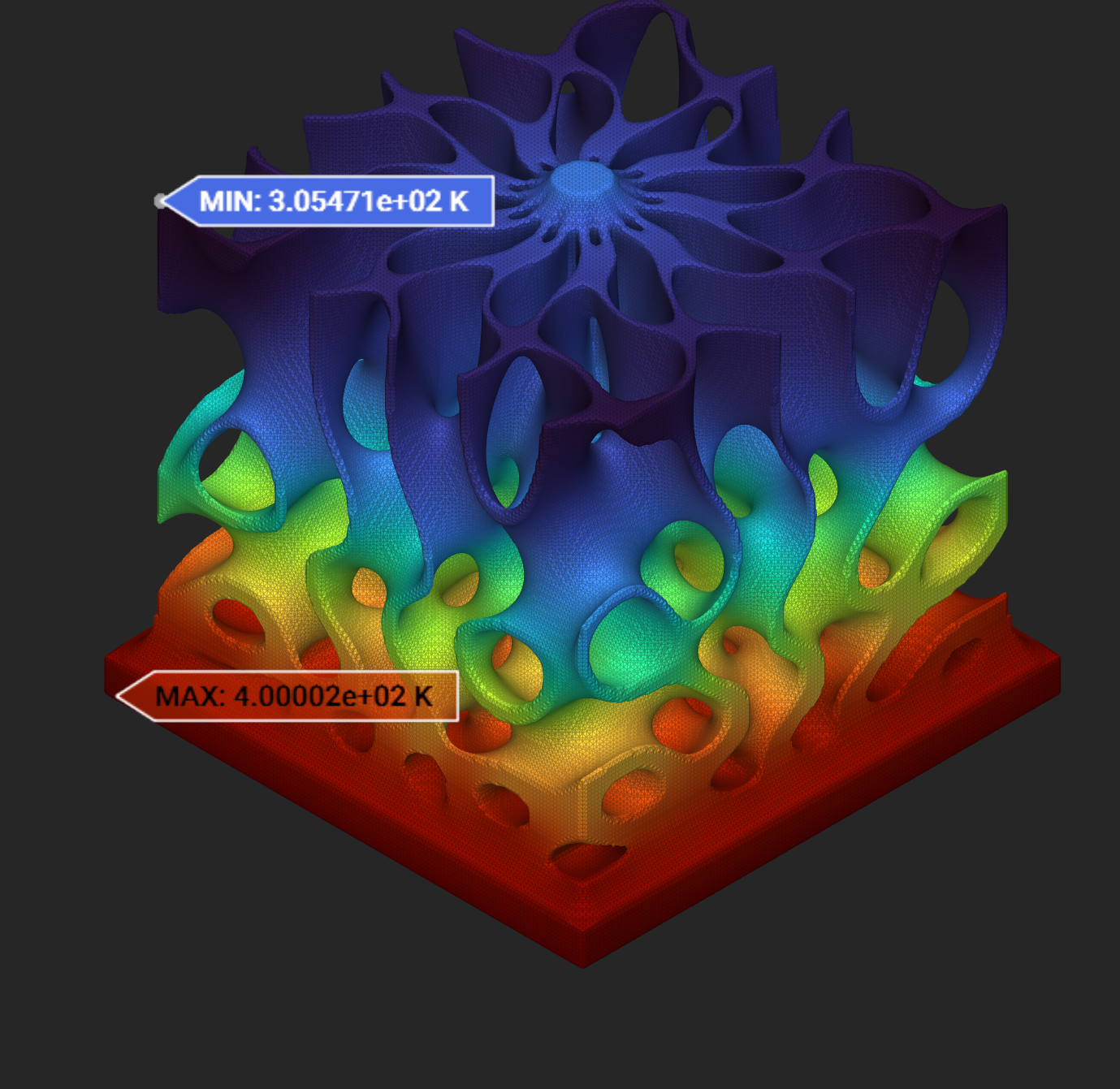

Intact Temperature:

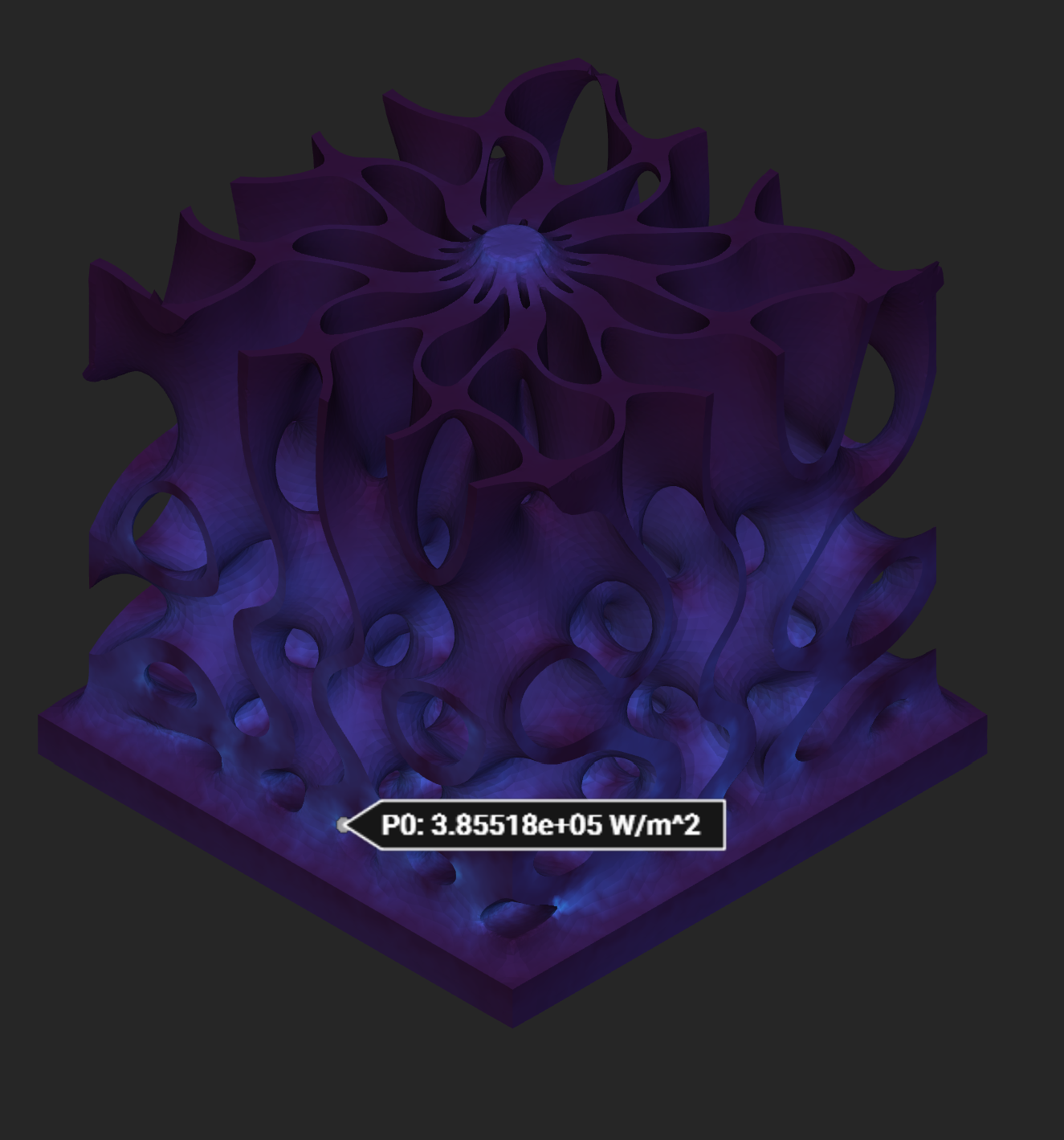

nTop Heat Flux (note there is some global maxima which impacts the flux scale):

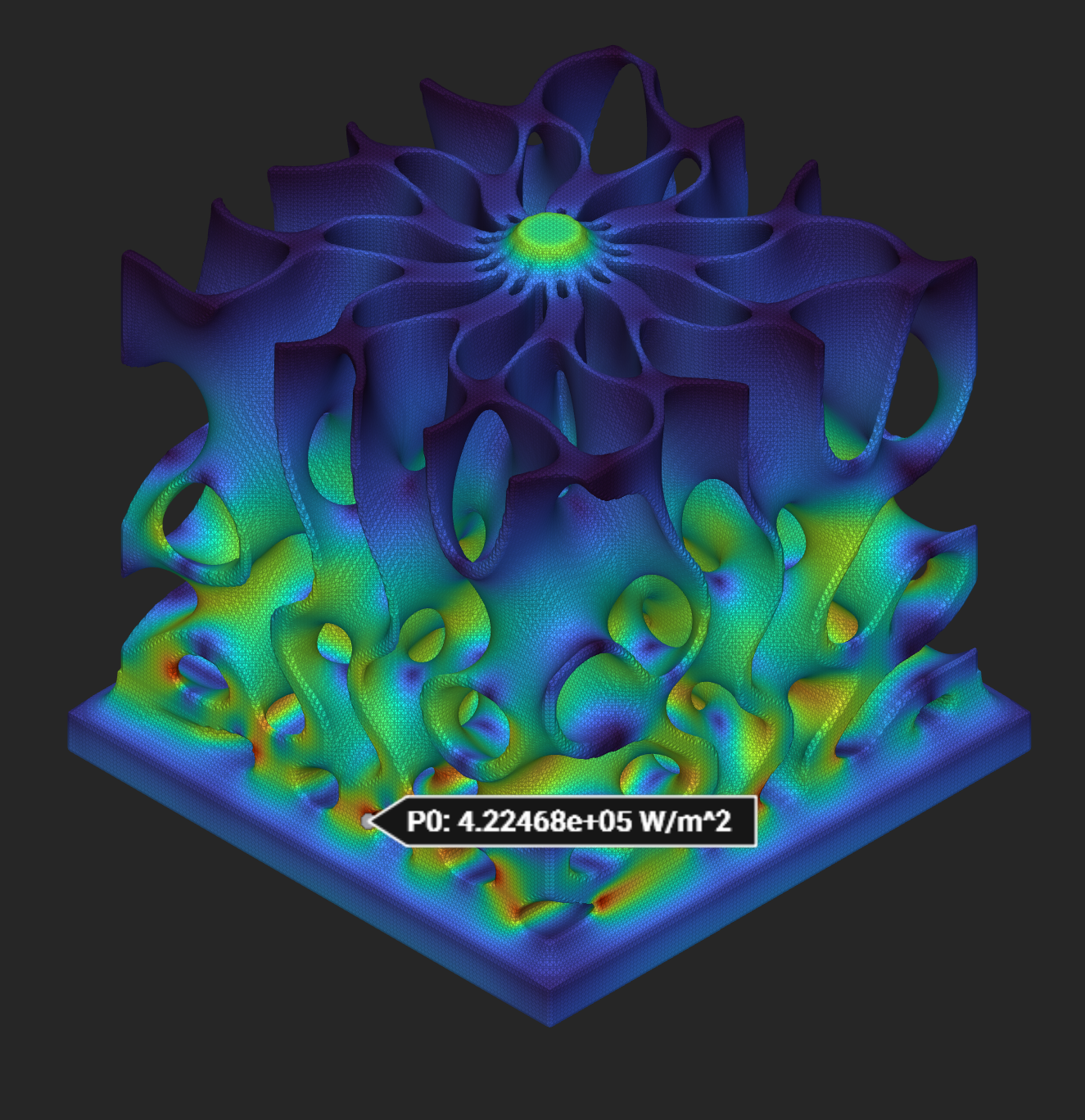

Intact Heat Flux:

Release notes

[1.0.2] - 2024-10-10

• Made intact_ntop a self-contained executable, so it is no longer necessary to separately install the .NET runtime.

• The resampling custom block now allows resampling the a solution multiple times when provided an optional “Resampling ID”.

• Fixed a bug so the sample geometry is written to the project directory, and not the installation directory.

[1.0.0] - 2024-10-1

• Initial release of Intact.Simulation for nTop.
