Getting Started
Controls
All commands in Scan&Solve™ are aggregated in two tabs: Specify Tab for setting up the analysis problem, and View Tab for visualizing, reporting, and storing the computed solution.

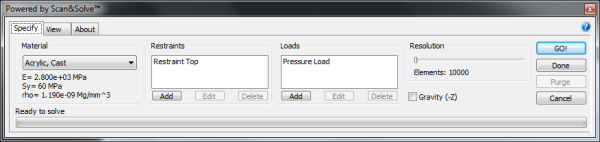

Specify Tab Control
| Command |
|
| Custom [Material] | Define custom materials. It is the first entry in the materials pull down menu. |
| Material Display [Material] | Shows a short description of the chosen material's properties. |
| Add [Restraints] | Restrain faces or edges of the solid |
| Edit [Restraints] | Indicate directional or partial restraints on previously restrained faces and edges |
| Delete [Restraints} | Remove restraints from previously restrained faces |
| Add [Loads] | Apply surface and/or body loads |
| Edit [Loads] | Edit direction and magnitude of previously applied loads |
| Delete [Loads] | Remove previously specified loads |
| Gravity (Check box) | Turn gravity on/off. Gravity always acts vertically in -Z direction. |
| Resolution (slider) | Adjust the number of elements (degrees of freedom) use to approximate the solution. |
| Go | Initiates the Scan&Solve™ solution procedure |
| Done | Exit Scan&Solve™ after saving the current setup and the last computed solution. |
| Purge | Remove analysis results from the Rhino model and file |
| Cancel | Exit Scan&Solve™ without making changes. |

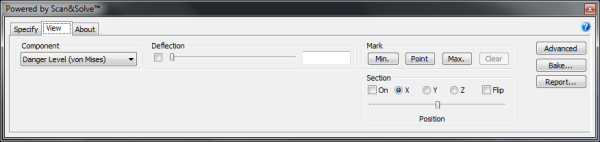

View Tab Controls
| Command |
|
| Danger Level [Component] | Pull down to select the default failure criterion for the material |
| Deflection (Slider) | Set the magnification factor to visualize the computed displacement |
| Minimum [Mark] | Display the value and the location of the minimum computed value of danger level |
| Point [Mark] | Display the computed value of danger level at a selected point |
| Maximum [Mark] | Display the value and the location of the maximum computed value of danger level |
| Clear [Mark] | Clears the Minimum, Point, Maximum labels. |
| On [Section] | Turns sections planes on and off. |
| X-axis [Section] | Section plane splits along X-axis. |
| Y-axis [Section] | Section plane splits along Y-axis. |
| Z-axis [Section] | Section plane splits along Z-axis. |
| Flip [Section] | Flip orientation of the section plane. |
| Advanced | Switches to Advanced View mode, with many additional options |
| Bake | The shown deformed solid is saved as a Rhino boundary mesh model |
| Report | Generate web ready report of the last analysis |

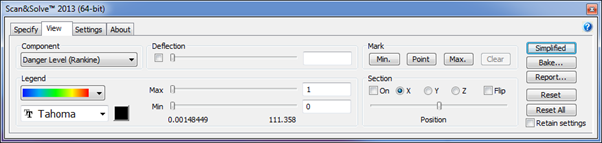

Advanced View Tab Controls
| Command |
|
| Legend | Pull down to select different color schemes for the failure criterion display |
| Max [Legend] | Adjust the maximum value of the legend |
| Min [Legend] | Adjust the minimum value of the legend |
| Reset | Reset Advanced View settings back to default values |
