Internal Forces

The following example demonstrates how stresses computed using Scan&Solve can be integrated to approximate the internal forces acting in a model. The inputs are hard-coded for the model linked to in this example.

function to numerically integrate SnS solution components (lines 5-22)
function to compute triangle area (lines 26-31)
function to integrate stress over a surface (lines 35-66)
the main routine (lines 69-109)

For conciseness, this example contains minimal error checking.

Option Explicit

'DuffyIntegrateSnS: Integrate over the triangle defined by the array of vertices
'in arrVerts using a Duffy 4 pt order 3 quadrature rule
Function DuffyIntegrateSnS(objSnSPlugin, strObject, strComponent, arrVerts)
        Dim DuffyWts:DuffyWts = Array(0.105662432702594, 0.105662432702594, 0.394337567297406, 0.394337567297406)
        Dim DuffyCoords:DuffyCoords = Array(0.044658198738520, 0.166666666666667, 0.788675134594813, 0.166666666666667, 0.044658198738520, 0.788675134594813, 0.166666666666667, 0.622008467928146, 0.211324865405187, 0.622008467928146, 0.166666666666667, 0.211324865405187)

        Dim quadPt(2),coord
        Dim area: area = TriangleArea(arrVerts)
        Dim sum: sum = 0
        Dim quadID: quadID = 0
        While quadID <= UBound(DuffyWts)
                For coord= 0 To 2
                        quadPt(coord) = (arrVerts(0)(coord) * DuffyCoords(quadID * 3)) + (arrVerts(1)(coord) * DuffyCoords(quadID * 3 + 1)) + (arrVerts(2)(coord) * DuffyCoords(quadID * 3 + 2))
                Next
                sum = sum + DuffyWts(quadID) * objSnSPlugin.QuerySolutionValue(strObject, strComponent, quadPt)
                quadID = quadID + 1
        Wend
        sum = sum * area
        DuffyIntegrateSnS = sum
End Function

'TriangleArea: Utility function to compute the area of the triangle defined
'by the array of vertices in arrVerts
Function TriangleArea(arrVerts)
        Dim vec0: vec0 = Rhino.VectorSubtract(arrVerts(1), arrVerts(0))
        Dim vec1: vec1 = Rhino.VectorSubtract(arrVerts(2), arrVerts(0))
        Dim vecCross: vecCross = Rhino.VectorCrossProduct(vec0, vec1)
        TriangleArea = 0.5 * Rhino.VectorLength(vecCross)
End Function

'StressForce: Utility function to integrate a stress component over a surface
'defined by strSurfaceObject
Function StressForce(objSnSPlugin, strSolidObject, strSurfaceObject, strComponent)
        Dim meshObject,arrFaces,arrVerts(2),fid
        Dim sumSF: sumSF = 0

        'Extract the analysis mesh for the surface object
        If Rhino.IsObject(strSurfaceObject) Then
                meshObject = Rhino.ExtractAnalysisMesh(strSurfaceObject)
        Else
                Rhino.Print "Invalid surface object"
                StressForce = 0
        End If

        'Integrate the desired stress component over the extracted mesh
        If Not isNull(meshObject) Then
                Rhino.MeshQuadsToTriangles meshObject
                arrFaces = Rhino.MeshFaces(meshObject, False)
                If IsArray(arrFaces) Then
                        fid = 0
                        While fid <= UBound(arrFaces)
                                arrVerts(0) = arrFaces(fid)
                                arrVerts(1) = arrFaces(fid + 1)
                                arrVerts(2) = arrFaces(fid + 2)
                                fid = fid + 3
                                sumSF = sumSF + DuffyIntegrateSnS(objSnSPlugin, strSolidObject, strComponent, arrVerts)
                        Wend
                End If
                Rhino.DeleteObject meshObject
        Else
                Rhino.Print "Unable to extract analysis mesh"
        End If
        StressForce = sumSF
End Function

Call Main()
Sub Main()
        On Error Resume Next
        Dim objFSO, objFile, strFileLocation
        Dim objSnSPlugin
        Dim strSolidObject : strSolidObject = Rhino.GetObject("Select a solid")

        'Prompt for the output filename
        strFileLocation = Rhino.SaveFileName("Output Filename", "*.txt", "", "RS_Output.txt", "txt")
        Set objFSO = CreateObject("Scripting.FileSystemObject")
        If Not isNull(strFileLocation) Then
                Set objFile = objFSO.CreateTextFile(strFileLocation, True)
        End If

        Set objSnSPlugin = Rhino.GetPluginObject("SnSScript")

        If Err Then
                MsgBox Err.Description
                Exit Sub
        End If

        Dim arrInputs(3), interfaceID, Force
        'The zeroth element of these arrays corresponds to the GUIDs of the planes at the interfaces
        arrInputs(1) = Array("86e088cc-66be-4dec-afaa-db4cab66a622", "SIGZX", " N on Z-Face in X-Direction")
        arrInputs(2) = Array("1b965e90-355d-4228-b0ae-182e30ee42a8", "SIGZX", " N on Z-Face in X-Direction")

        'Turn off output from SnSScript (turn on for debugging)
        objSnSPlugin.SetOutputOnOff False

        interfaceID = 1
        While interfaceID <= UBound(arrInputs)
                If Rhino.IsObject(arrInputs(interfaceID)(0)) Then
                        Force = StressForce(objSnSPlugin, strSolidObject, arrInputs(interfaceID)(0), arrInputs(interfaceID)(1))
                        If Not isNull(objFile) Then
                                objFile.WriteLine "Shearing force on interface " & interfaceID & " is " & Force & arrInputs(interfaceID)(2)
                        Else
                                Rhino.Print "Shearing force on interface " & interfaceID & " is " & Force & arrInputs(interfaceID)(2)
                        End If
                End If
                interfaceID = interfaceID + 1
        Wend
End Sub

Line #	Description
1	Only scripts with Option Explicit specified can be debugged in the RhinoScript editor (Monkey).
5-22	Define a function to numerically integrate a solution component over a triangle.
6-7	Define the quadrature weights and points for integrating over a triangle.
10	Compute the area of the current triangle.
13-19	Iterate over quadrature weights and points, evaluating the integral of the specified solution component.
26-31	Define a function to compute the area of a triangle using the cross-product.
35-66	Define a function to integrate a solution component over a surface in Rhino.
40-45	Extract a mesh approximation of the surface.
49	Convert the mesh quads to triangles for compatibility with integration algorithm.
53-59	Integrate over each mesh face, accumulating their contributions in sumSF.
61	Delete the mesh object for the surface.
69-109	The main body of the script.
73	Prompt the user to select a solid from the Rhino document. The solid is identified by its GUID stored in strObject.
76	Prompt the user for an output filename.
77-80	Create the text file object.
82	Obtain a reference to the SnSScript plug-in, exit if an error occurs.
91-92	Specify the GUIDs of the surfaces over which integration is to be performed, the stress component to integrate, and the textual description of the result. Rhino's What command is used to provide the GUIDs of the surfaces.
95	Turn off the command line output of SnSScript.
98-108	Iterate over surfaces, integrate stress on each, and write output to a file or the command line.

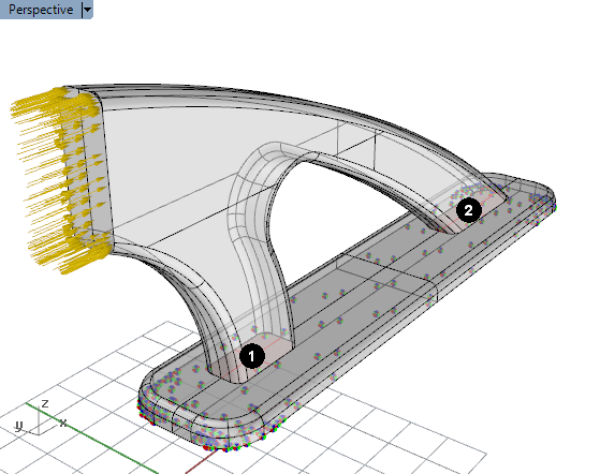

The solid model for this example has a 2000 N force applied to the vertical face on the left and is fixed on the bottom face. We are interested in computing the shear forces in the X-direction on surfaces (1) and (2) using the above script.

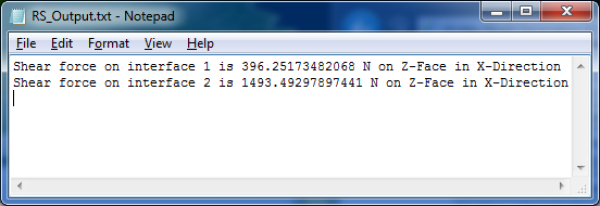

Running the example RhinoScript will generate a text file that reports the shearing forces on the specified surfaces. The output can be viewed using Notepad (below) or imported into another application.

To determine the approximate magnitude of other forces at these surfaces, the desired stress components at lines 91 and 92 can be changed along with the corresponding descriptions.
