Baking Deformed Geometry in Color
With the right 3D printing equipment, it is possible to print Scan&Solve results into a real-world physical prototype. The instructions here show how to export Scan&Solve results in textured VRML format suitable for 3D printing.
Step 1: Adjust the View

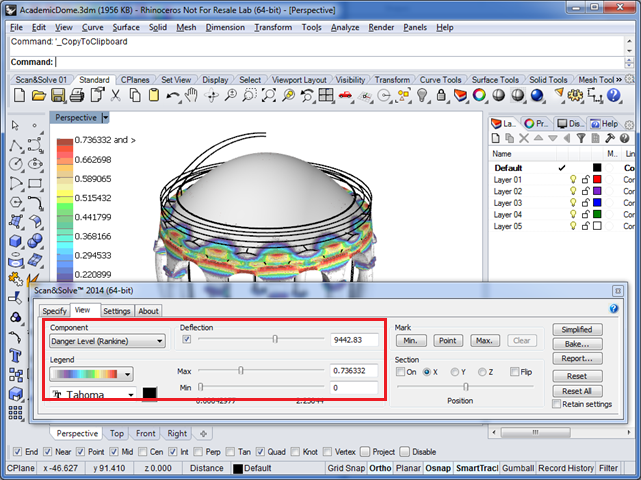

In the View tab, choose the solution component to display as well as the deflection scale:
The [Advanced] view (shown) allows selection from more solution components and as well as allowing adjustments to the legend.
Step 2: Start the Baking Process

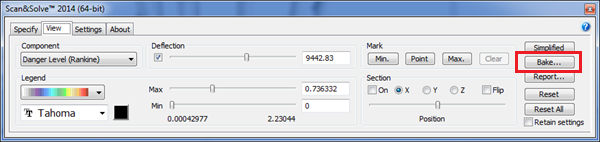

Choose [Bake] from the View tab:
Step 3: Choose Output Options

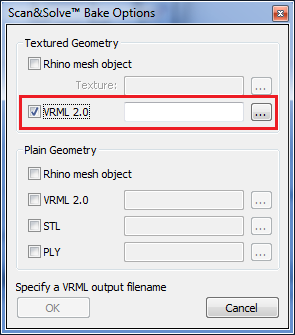

In the Scan&Solve Bake Options dialog check the VRML 2.0 checkbox to select VRML output:

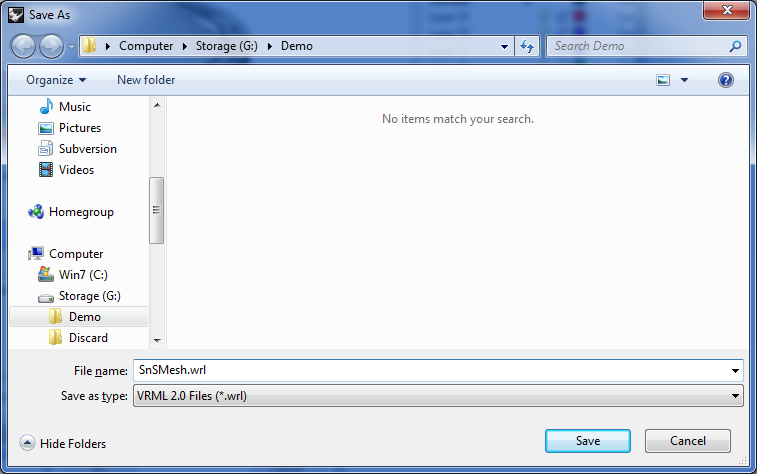

Choose […] to browse the file system and select the output filename and destination folder. The default name is SnSMesh.wrl:
Choose [Save] to close the dialog and return to the Scan&Solve Bake Options dialog.
Step 4: Generate the Output

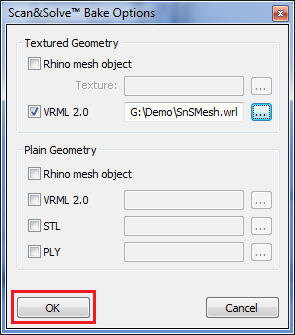

In the Scan&Solve Bake Options dialog, choose [OK] to generate the output VRML file:
Step 5: Verify Successful Baking

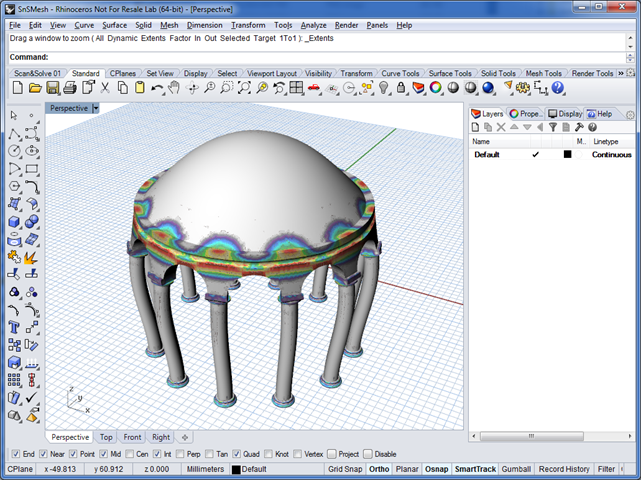

In another instance of Rhino, choose File > Open… and open the just-baked .wrl file. The colored results will show up in Rendered viewports, as shown here:
