Static Scenario: Plate W/ Hole (Stress Concentration)

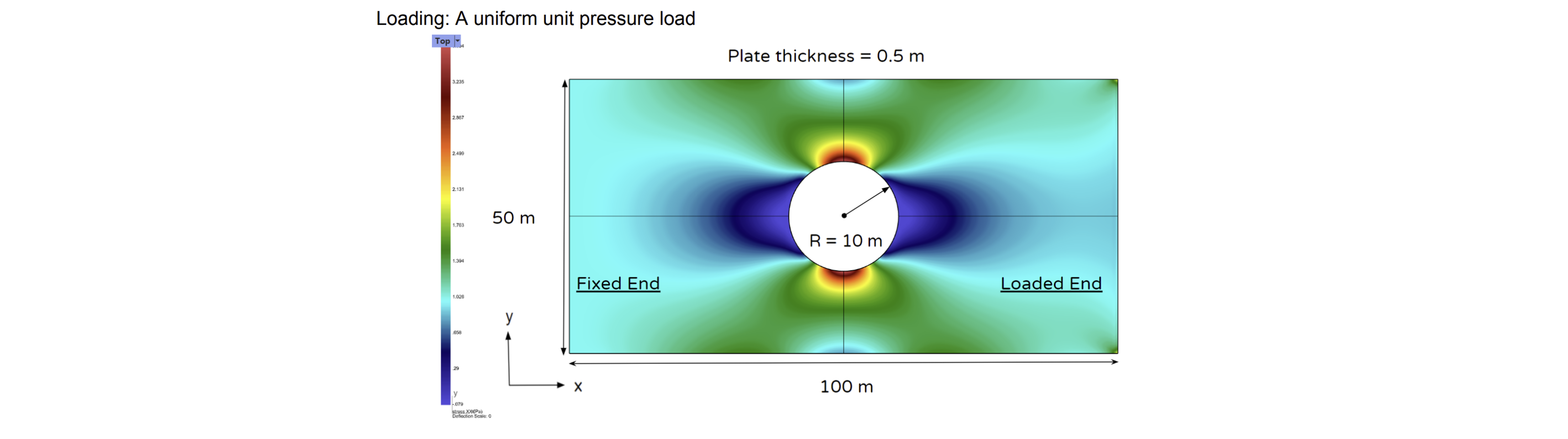

Geometry & Materials Setup
The geometry and grasshopper files for this example can be downloaded here: plate_with_hole.zip
*Legacy* files for Rhino 7 can also be found here: plate_with_hole_rhino7.zip
Materials:
- Isotropic (stress independent of material otherwise)

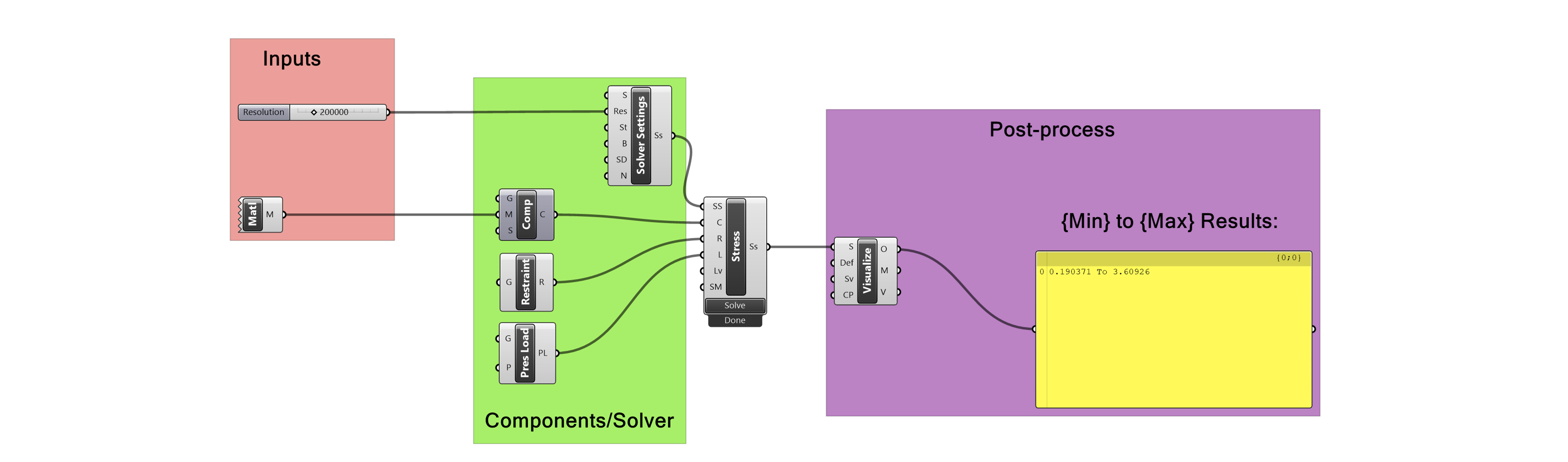

Grasshopper File

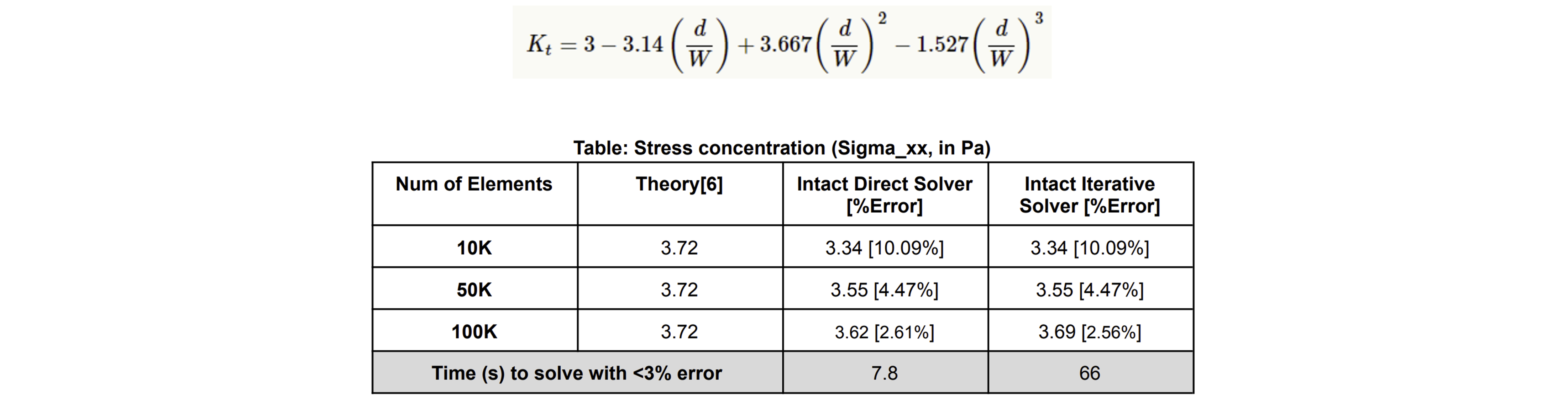

Reference Results
(stress concentration factor equation)
