The geometry and grasshopper files for this example can be downloaded here: multiload_cantilever.zip
*Legacy* files for Rhino 7 can also be found here: multiload_cantilever_rhino7.zip

Materials:

• Isotropic
• Young's Modulus: 10 MPa
• Poisson's Ratio: 0.3

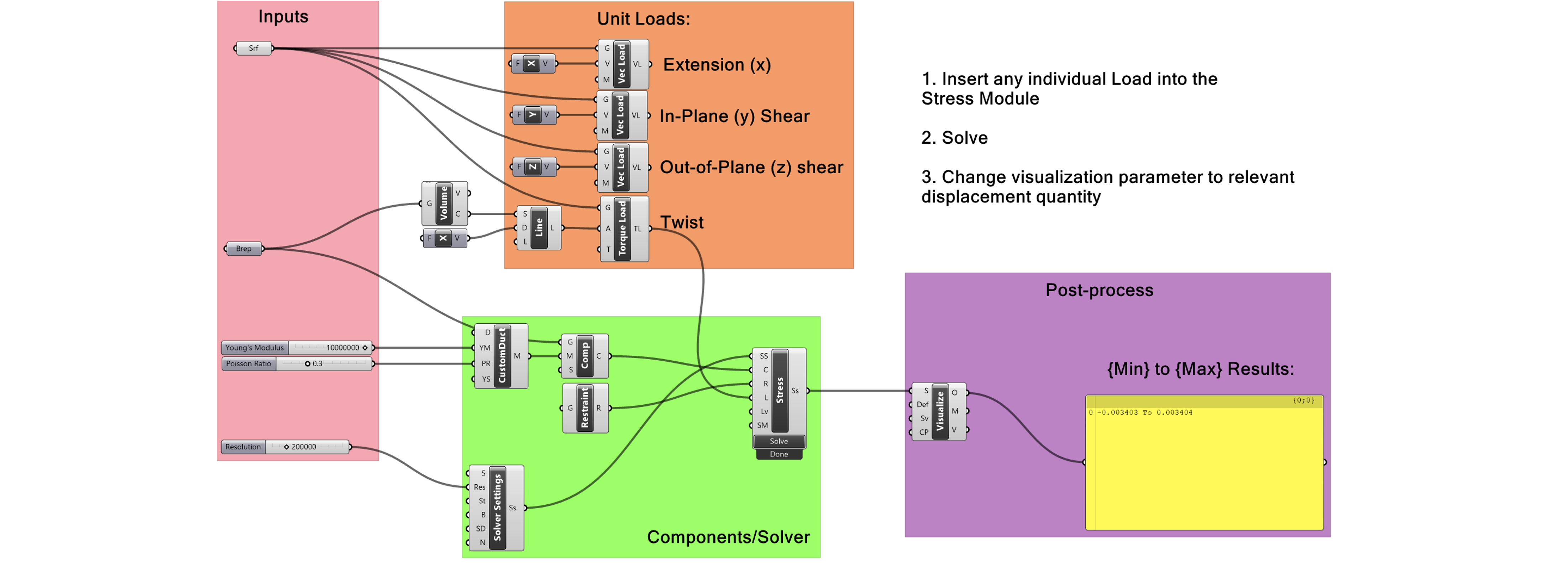

Note, you have to manually input each load case individually into the solver. Each load is already present in the grasshopper file, so, if for example, you wanted to test extension in the x-direction you would connect the corresponding load to the solver block, re-solve, and change the visualization menu to x-direction displacement.
