Modal Scenario: Free Thin Square Plate
Geometry & Materials Setup
The geometry and grasshopper files for this example can be downloaded here: free_thin_squareplate.zip
*Legacy* files for Rhino 7 can also be found here: free_thin_squareplate_rhino7.zip
Materials:
- Isotropic
- Young's Modulus: 200 GPa
- Poisson's Ratio: 0.3
- Density: 8000 kg/m^3
Grasshopper File

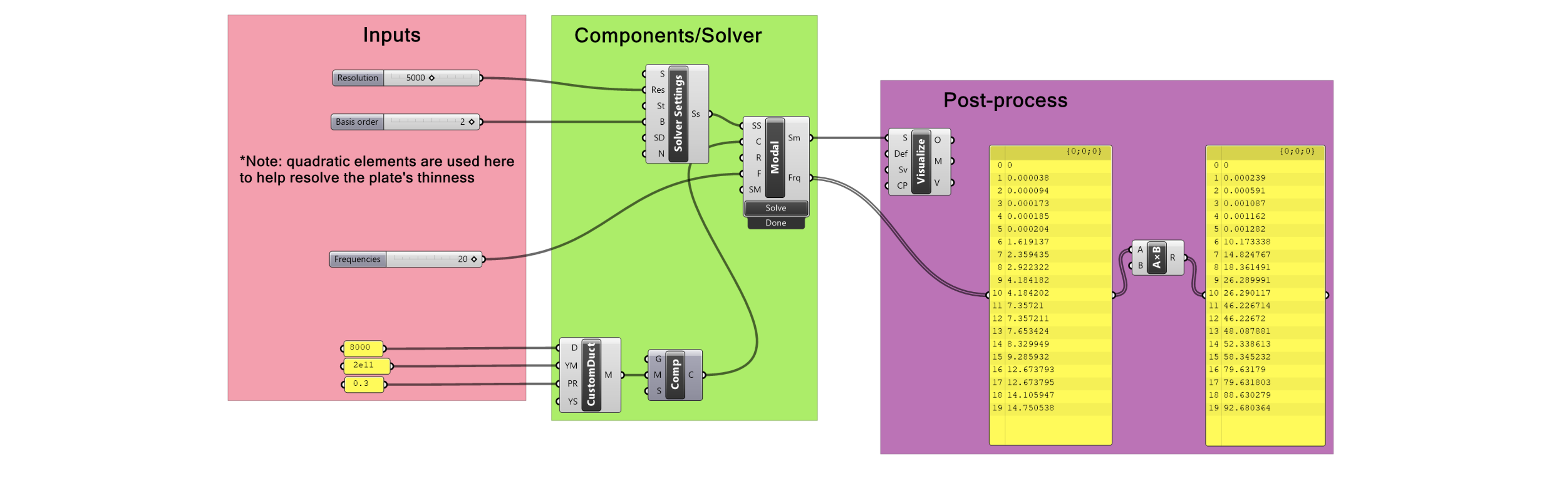

Here we use quadratic elements in order to resolve the thinness of the plate.

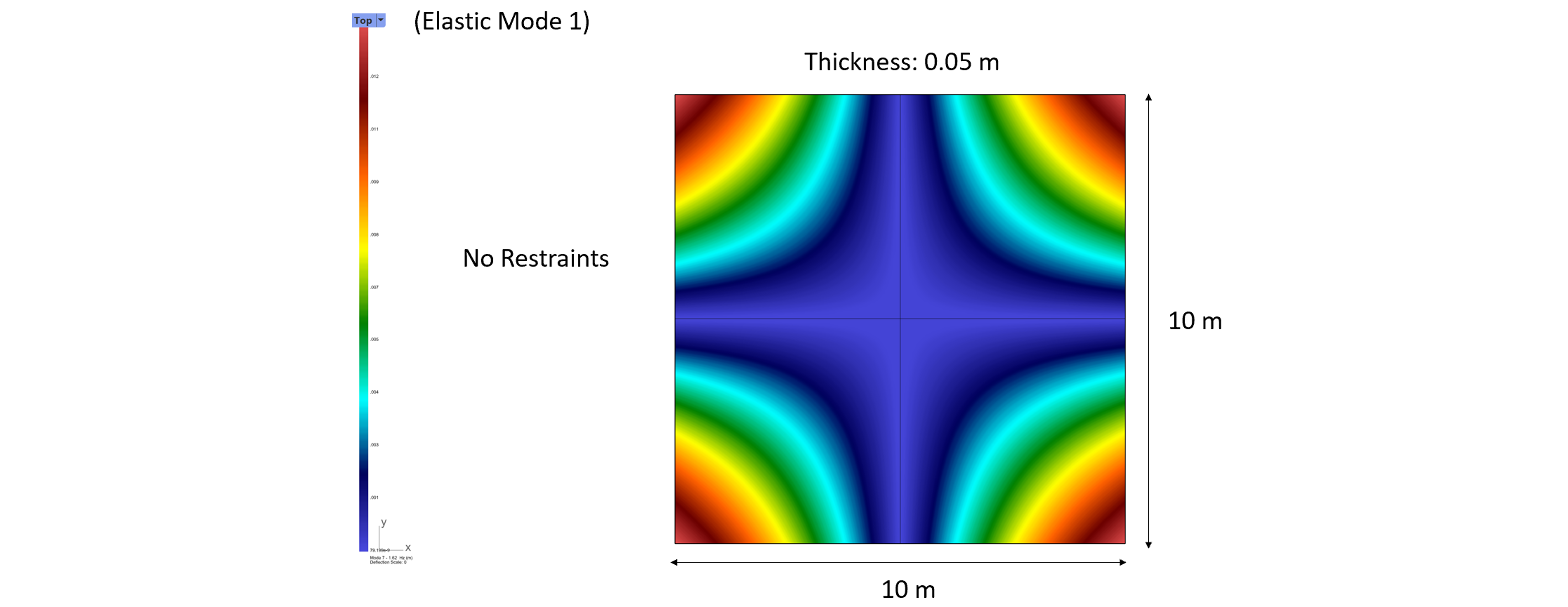

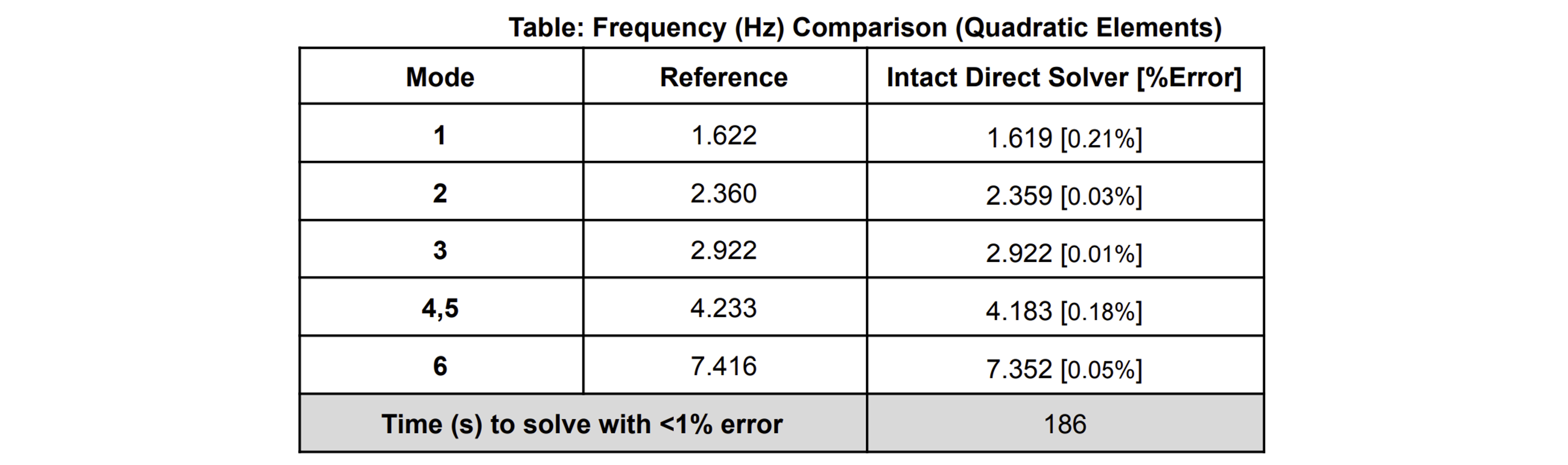

Reference Results
