Modal Scenario: Clamped Square Plate

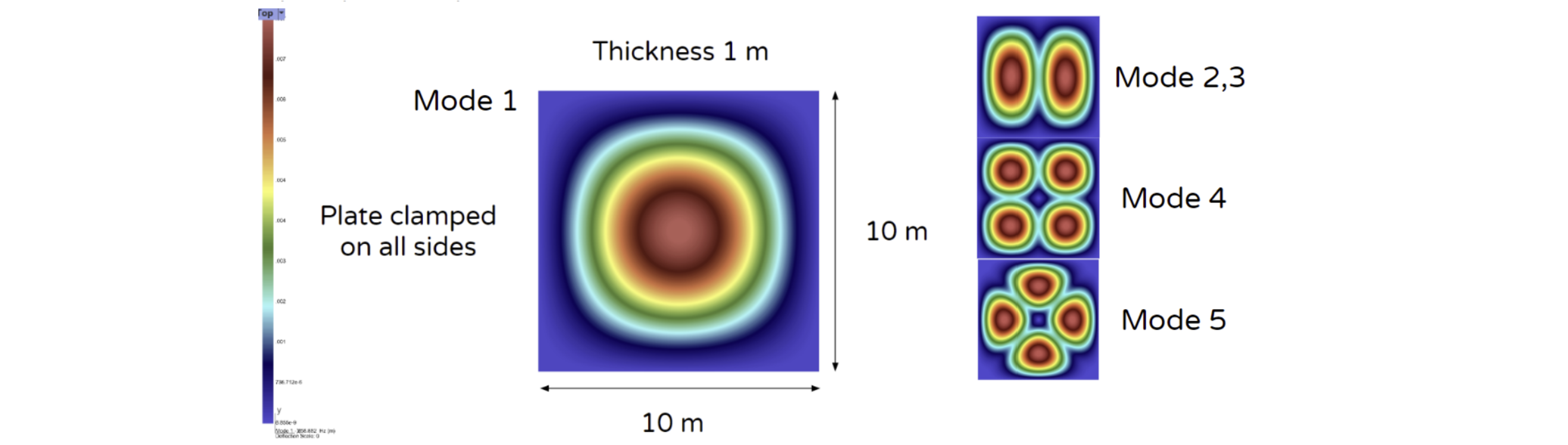

Geometry & Materials Setup
The geometry and grasshopper files for this example can be downloaded here: clamped_squareplate.zip
*Legacy* files for Rhino 7 can also be found here: clamped_squareplate_rhino7.zip
Materials:
- Isotropic
- Young's Modulus: 2.4 GPa
- Poisson's Ratio: 0.35
- Density: 1020 kg/m^3

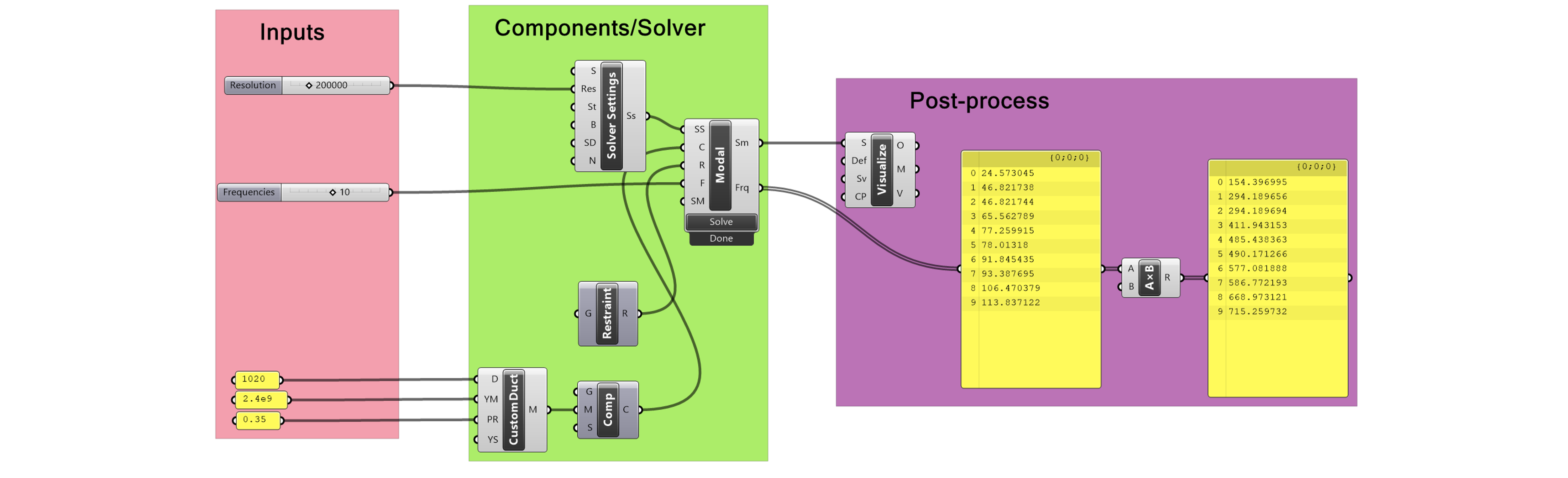

Grasshopper File

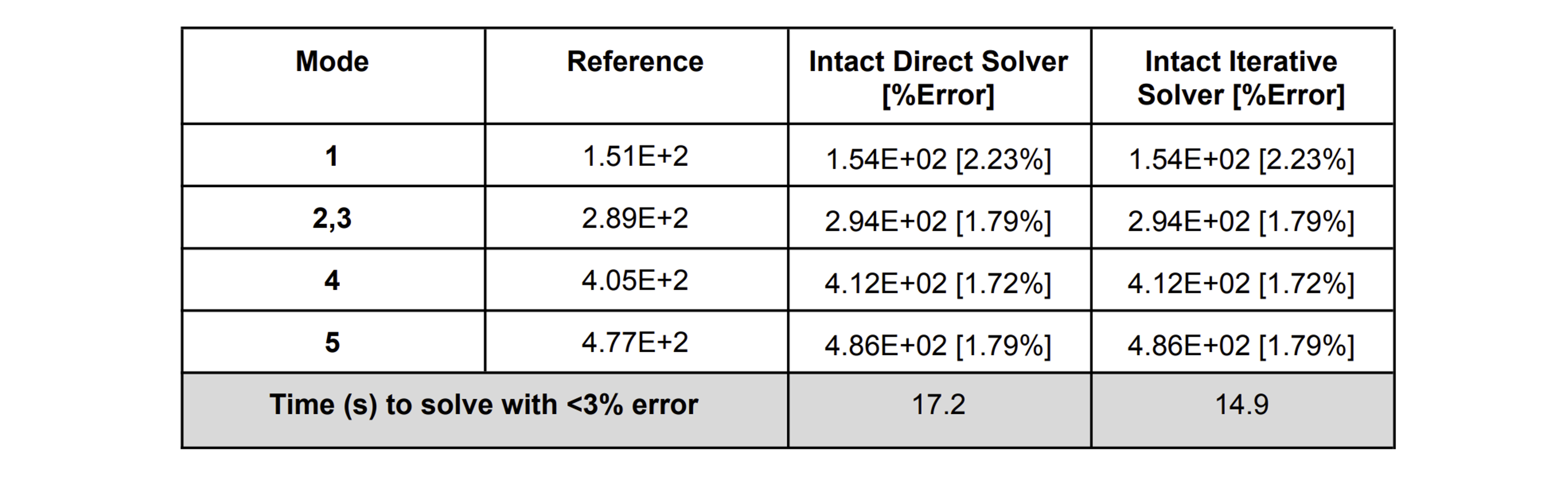

Reference Results
