📌 Extract Min/Max of the Solution This page provides a custom Grasshopper cluster to extract and visualize the minimum and maximum values from a simulation result field (e.g. von Mises stress) on a mesh.

The cluster includes:

• Automatic detection of min/max value and location
• Offset label positioning using a configurable labelOffsetFactor
• Leader lines to clearly associate labels with their corresponding points

How to Use

• Download and unzip the file
• Drag and drop the .ghcluster onto your Grasshopper canvas

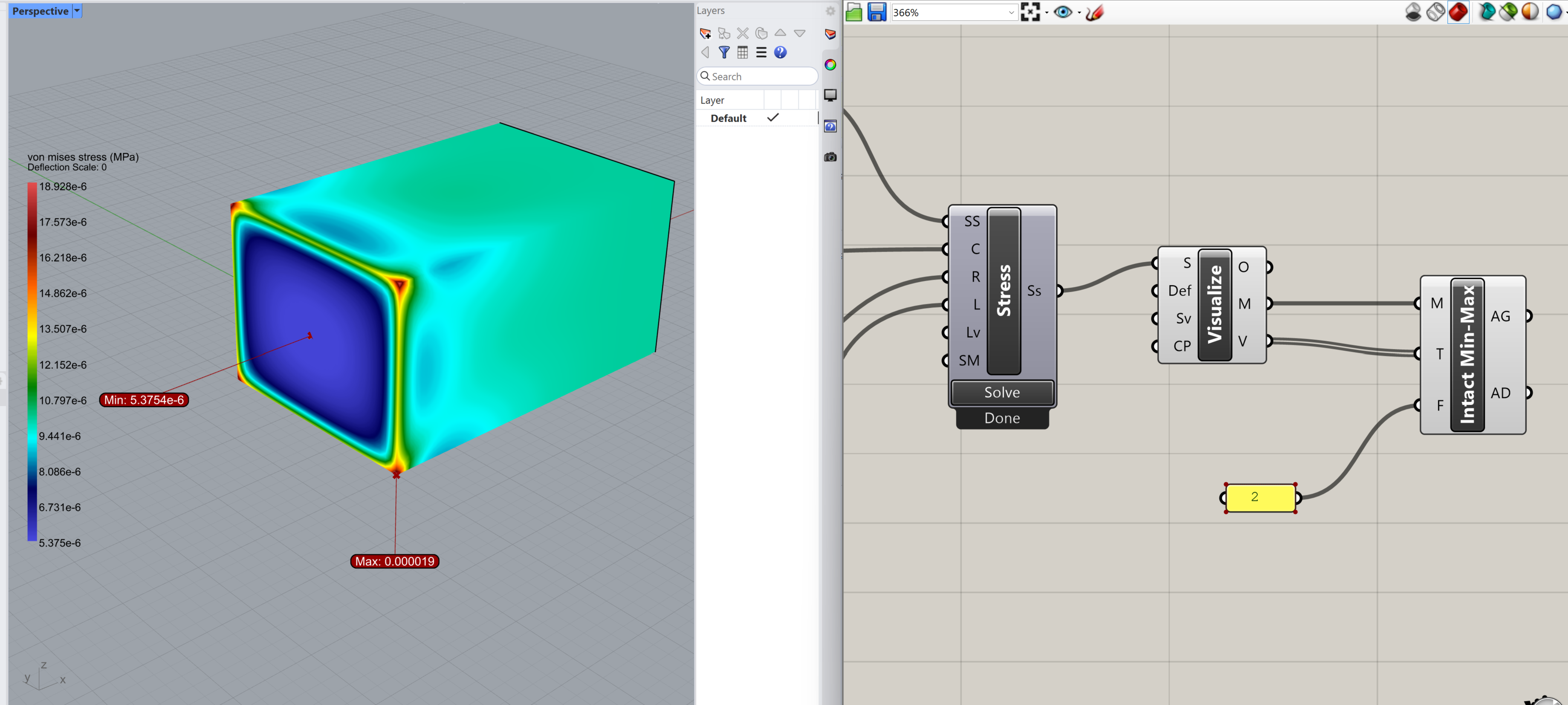

• Connect it to your simulation results and the Visualize block, as shown below

📁 Download Cluster ⤓ Download Grasshopper Cluster
